Technical Data

ABOX-U200-H81 Specs:

Models	ABOX-U200-H81
CPU	Intel 4^th /5^th Gen. Core i7/i5/i3, Pentium, Celeron Desktop CPUs; Max. 95W TDP; LGA1150
Chipset	Intel H81
BIOS	AMI UEFI BIOS (Support Watchdog Timer)
Memory	2* U-DIMM Slots, Dual Channel, DDR3 up to 1600Mhz; Max. up to 16GB (Single max. 8GB)
Graphics	Intel HD Graphics
Ethernet	2* RJ45; 1* Intel i210AT GbE chip, 1* Intel i218-V/LM GbE chip
Storage	1* 2.5” SATA3.0, 2* 2.5” SATA2.0
Storage	1* M.2 Key-M (SATA3.0, 2242/2260/2280)
Expansion Slots	1* PCIe x16 (PCIe Gen3 x16), Half height 1* PCIe x4 (PCIe Gen2 x2), Half height, colay signal with Mini-PCIe 1* PCIe x1 (PCIe Gen2 x1), Half height 4* PCI slots, Half height 1* Mini-PCIe (PCIe Gen 1 x1 + USB2.0, with 1* SIM card slot)
Rear I/O	2* RJ45
	2* USB3.0 (Type-A, 5Gbps,), 4* USB2.0 (Type-A)
	1* HDMI: Max. resolution up to 4096*2160 @24Hz
	1* DVI-D: Max. resolution up to 1920*1200 @60Hz
	2* RS232/RS485/RS422 (COM1/2, DB9/M, Full Lane, BIOS Switch)
	3* 3.5mm Jack (Line-out +Line-in+ Mic)
	1* PS/2

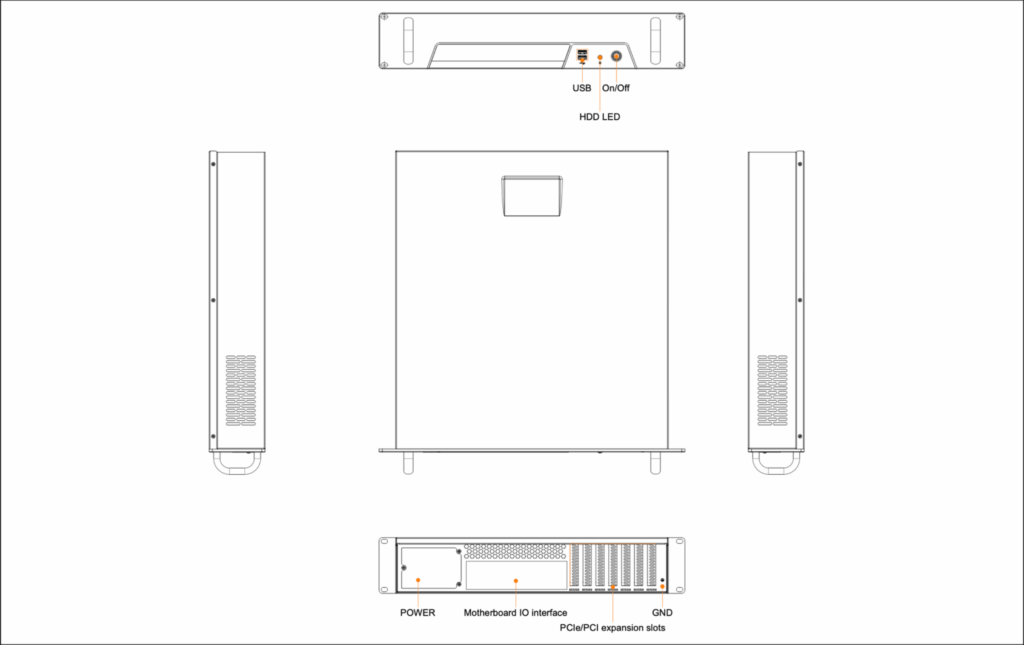

Front I/O	2* USB2.0 Type-A
	1* Power Button
	1* Power Indicator; 1* Storage Indicator
Internal I/O (Wafer)	1*USB2.0 wafer
	4* RS232 (COM 3/4/5/6, Full lanes)
	1* 16 bits GPIO (8* DI and 8* DO, Wafer)
	1 * LPT
	1* VGA (Max. resolution up to 1920*1200 @60Hz)
	3* SATA-III connector
	1* CPU Fan (Wafer); 2* SYS Fan (Wafer)
Power Supply	2U Power supply
OS	Windows 7/10/11
OS	Linux
Watch dog	Programmable via software from 1 to 255 second
Mechanical	Aluminum alloy, SGCC housing
	Rack mount, Desktop

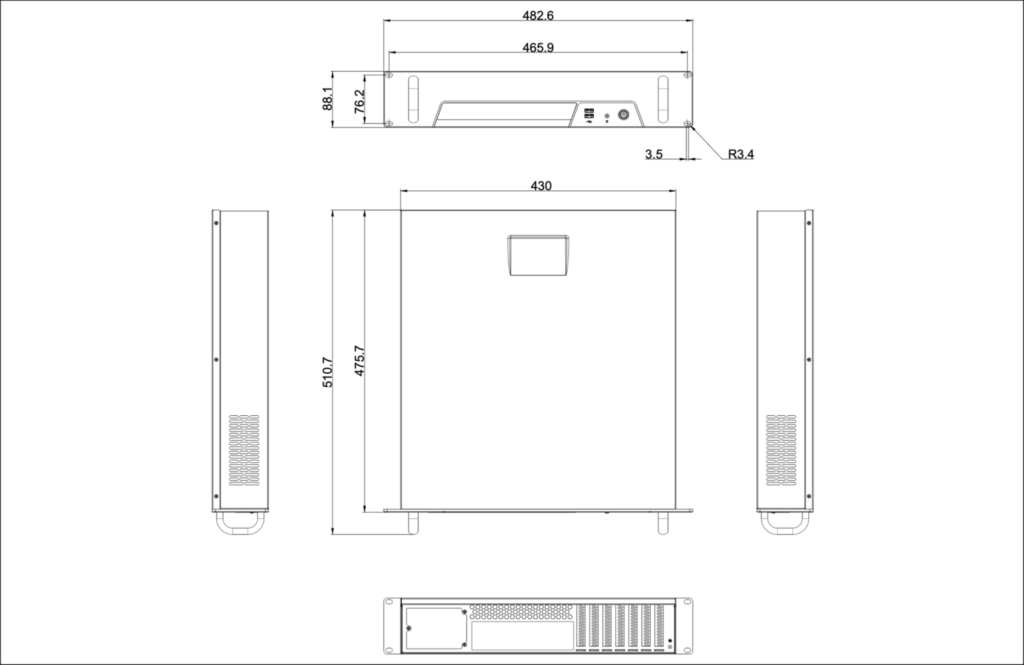

	482.6mm * 475.7mm* 88.1mm
	Netweight:10kg
Environment	PWM Intelligent Fan
	Operating temp.: 0 ~+50C
	Storage temp.: -20 ~+70C
	Humidity: 10% to 90% RH (Non-Condersation)
	Vibration: IEC 60068-2-64 (3Gms @5~500Hz, random, 1hr/axis) with SSD
	Shock: IEC 60068-2-27 (30G, half sine, 11ms) with SSD
	Certification: CE

ABOX-U200-H110A Specs:

Models	ABOX-U200-H110A
CPU	Intel 6^th /7^th /8^th /9^th Gen. Core i7/i5/i3, Pentium, Celeron Desktop CPUs; Max. 95W TDP; LGA1151
Chipset	Intel H110
BIOS	AMI UEFI BIOS (Support Watchdog Timer)
Memory	2* U-DIMM Slots, Dual Channel, DDR4 up to 2666Mhz; Max. up to 64GB (Single max. 32GB)
Graphics	Intel HD Graphics
Ethernet	2* RJ45; 1* Intel i210AT GbE chip, 1* Intel i219-V/LM GbE chip
Storage	3* 2.5” SATA3.0
Storage	1* M.2 Key-M (SATA3.0, 2280)
Expansion Slots	1* PCIe x16 (PCIe Gen3 x16, 1^st slot), Half height 1* PCIe x4 (PCIe Gen2 x4, 3^rd slot), Half height, colay signal with Mini-PCIe 5* PCI slots (2^nd 4^th /5^th /6^th /7^th slots), Half height 1* Mini-PCIe (PCIe Gen 2 x1, with 1* SIM card slot)
Rear I/O	2* RJ45
	3* USB3.0 (Type-A, 5Gbps,), 3* USB2.0 (Type-A)
	1* HDMI: Max. resolution up to 4096*2160 @30Hz
	1* DVI-D: Max. resolution up to 1920*1200 @60Hz
	2* RS232/RS485/RS422 (COM1/2, DB9/M, Full Lane, BIOS Switch)
	3* 3.5mm Jack (Line-out +Line-in+ Mic)
	1* PS/2
Front I/O	2* USB2.0 Type-A
	1* Power Button
	1* Power Indicator; 1* Storage Indicator
Internal I/O (Wafer)	1*USB2.0 wafer
	4* RS232 (COM 3/4/5/6)
	1* 16 bits GPIO (8* DI and 8* DO, Wafer)
	1 * LPT
	1* VGA (Max. resolution up to 1920*1200 @60Hz)
	3* SATA-III connector
	1* CPU Fan (Wafer); 2* SYS Fan (Wafer)
Power Supply	2U Power supply
OS	Windows 7/10/11 (6^th /7^th Gen. CPUs); Windows 10/11 (8^th /9^th Gen. CPUs)
OS	Linux
Watch dog	Programmable via software from 1 to 255 second
Mechanical	Aluminum alloy, SGCC housing
	Rack mount, Desktop
	482.6mm * 475.7mm* 88.1mm
	Netweight:10kg
Environment	PWM Intelligent Fan
	Operating temp.: 0 ~+50C
	Storage temp.: -20 ~+70C
	Humidity: 10% to 90% RH (Non-Condersation)
	Vibration: IEC 60068-2-64 (3Gms @5~500Hz, random, 1hr/axis) with SSD
	Shock: IEC 60068-2-27 (30G, half sine, 11ms) with SSD
	Certification: CE

ABOX-U200-H610A Specs:

Models	ABOX-U200-H610A
CPU	Intel 12^th /13^th /14^th Gen. Core i7/i5/i3, Pentium, Celeron Desktop CPUs; 65W TDP; LGA1700
Chipset	Intel H610
BIOS	AMI UEFI BIOS (Support Watchdog Timer)
Memory	2* U-DIMM Slots, Dual Channel, DDR4 up to 3200Mhz; Max. up to 64GB (Single max. 32GB)
Graphics	Intel HD Graphics
Ethernet	2* RJ45; 1* Intel i226-V/LM 2.5GbE chip, 1* Intel i219-V/LM GbE chip
Storage	3* 2.5” SATA3.0
Storage	1* M.2 Key-M (SATA3.0, 2280)
Expansion Slots (Half-height)	1* PCIe x16 (PCIe Gen4 x16, 1^st slot) 3* PCIe x4 (PCIe Gen3x2, 3^rd /4^th /5^th slots) 3* PCI slots (2^nd /6^th /7^th slots)
Rear I/O	2* RJ45
	4* USB3.0 (Type-A, 5Gbps,), 2* USB2.0 (Type-A)
	1* HDMI: Max. resolution up to 3840*2160 @30Hz
	1* DVI-D: Max. resolution up to 1920*1200 @60Hz
	1* VGA: Max. resolution up to 1920*1200 @60Hz
	1* RS232 (COM1, DB9/M, Full Lane, BIOS Switch)
	3* 3.5mm Jack (Line-out +Line-in+ Mic)
	1* PS/2
Front I/O	2* USB2.0 Type-A
	1* Power Button
	1* Power Indicator; 1* Storage Indicator
Internal I/O (Wafer)	1* USB2.0 Vertical Type-A; 1*USB2.0 wafer
	3* RS232 (COM 2/5/6); 2* RS232/RS485 (COM3/4, jumper switch)
	1* 8 bits GPIO (4* DI and 4* DO, Wafer)
	3* SATA-III connector
	1* CPU Fan (Wafer); 2* SYS Fan (Wafer)
Power Supply	2U Power supply
OS	Windows 10/11
OS	Linux
Watch dog	Programmable via software from 1 to 255 second
TPM	Default fTPM, optional dTPM2.0
Mechanical	Aluminum alloy, SGCC housing
	Wall mount, Desktop
	482.6mm * 475.7mm* 88.1mm
	Netweight:10kg
Environment	PWM Intelligent Fan
	Operating temp.: 0 ~+50C
	Storage temp.: -20 ~+70C
	Humidity: 10% to 90% RH (Non-Condersation)
	Vibration: IEC 60068-2-64 (3Gms @5~500Hz, random, 1hr/axis) with SSD
	Shock: IEC 60068-2-27 (30G, half sine, 11ms) with SSD
	Certification: CE

ABOX-U200-Q670A Specs:

Models	ABOX-U200-Q670A
CPU	Intel 12^th /13^th /14^th Gen. Core i7/i5/i3, Pentium, Celeron Desktop CPUs; Max. 125W TDP; LGA1700
Chipset	Intel Q670
BIOS	AMI UEFI BIOS (Support Watchdog Timer)
Memory	4* U-DIMM Slots, Dual Channel, DDR5 up to 4400Mhz; Max. up to 192GB (Single max. 48GB)
Graphics	Intel HD Graphics
Ethernet	2* RJ45; 1* Intel i210AT GbE chip, 1* Intel i219-V GbE chip
Storage	4* 2.5” SATA3.0
Storage	1* M.2 Key-M (PCIe Gen4 x4 + SATA3.0, NVMe/SATA Auto detect, 2280)
Expansion Slots	2* PCIe x16 (PCIe Gen4 x8, 1^st /4^th slots), Half height 3* PCIe x4 (PCIe Gen4x 4, 2^nd /3^th /5^th slots), Half height 2* PCI slots (6^th /7^th slots), Half height 1* M.2 Key-E slot (PCIe Gen3 x1 + USB2.0, 2230)
Rear I/O	2* RJ45
	6* USB3.0 (Type-A, 5Gbps)
	1* HDMI: Max. resolution up to 4096*2160 @30Hz
	1* DVI-D: Max. resolution up to 1920*1200 @60Hz
	1* VGA: Max. resolution up to 1920*1200 @60Hz
	1* RS232 (COM1, DB9/M, Full Lane, BIOS Switch)
	3* 3.5mm Jack (Line-out +Line-in+ Mic)
Front I/O	2* USB2.0 Type-A
	1* Power Button
	1* Power Indicator; 1* Storage Indicator
Internal I/O (Wafer)	1* USB2.0 Vertical Type-A; 2* USB 5Gbps; 2*USB2.0 wafer
	3* RS232 (COM 2/5/6); 1* RS232/RS485/RS422 (COM3, jumper switch); 1* RS232/RS485 (COM4, jumper)
	1* 8 bits GPIO (4* DI and 4* DO, Wafer)
	4* SATA-III connector
	1* CPU Fan (Wafer); 2* SYS Fan (Wafer)
Power Supply	2U Power supply
OS	Windows 10/11
OS	Linux
Watch dog	Programmable via software from 1 to 255 second
TPM	Default fTPM, optional dTPM2.0
Mechanical	Aluminum alloy, SGCC housing
	Wall mount, Desktop
	482.6mm * 475.7mm* 88.1mm
	Netweight:10kg
Environment	PWM Intelligent Fan
	Operating temp.: 0 ~+50C
	Storage temp.: -20 ~+70C
	Humidity: 10% to 90% RH (Non-Condersation)
	Vibration: IEC 60068-2-64 (3Gms @5~500Hz, random, 1hr/axis) with SSD
	Shock: IEC 60068-2-27 (30G, half sine, 11ms) with SSD
	Certification: CE

Click to enlarge

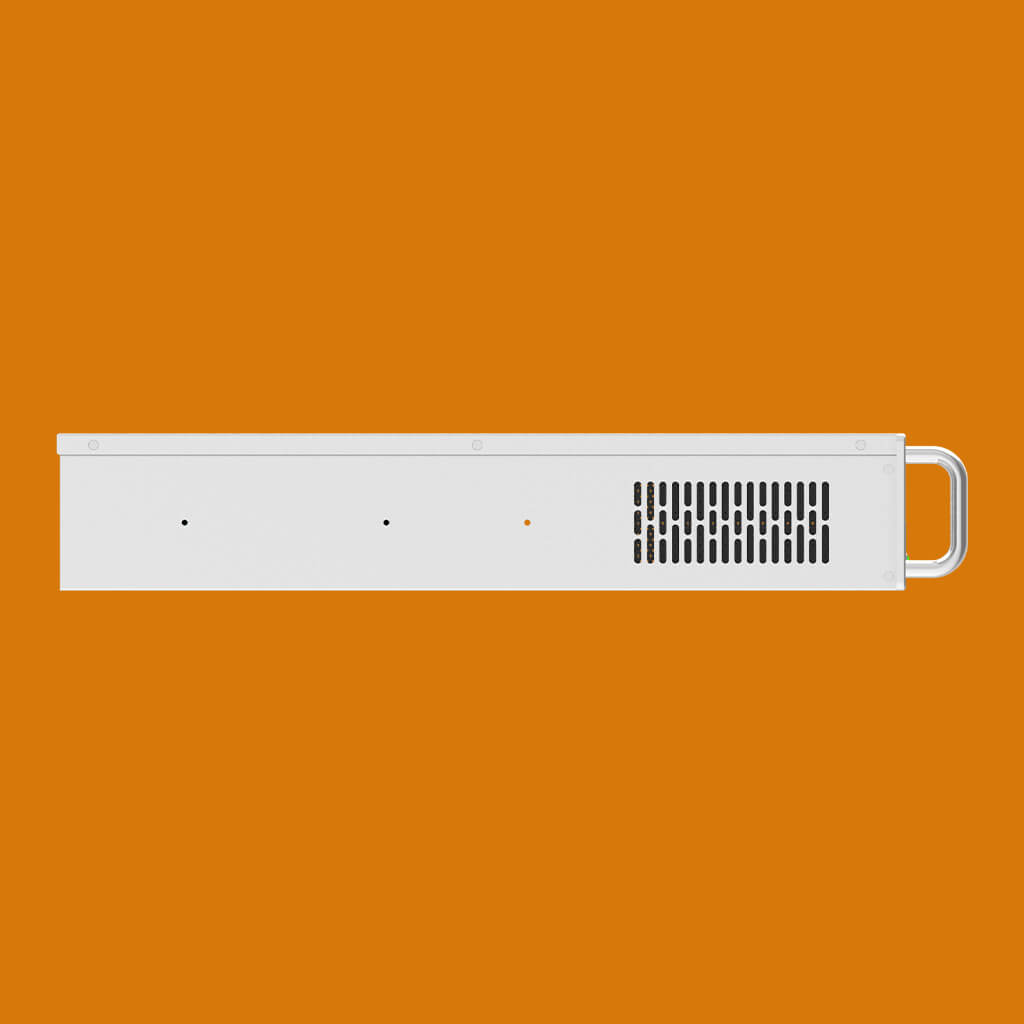

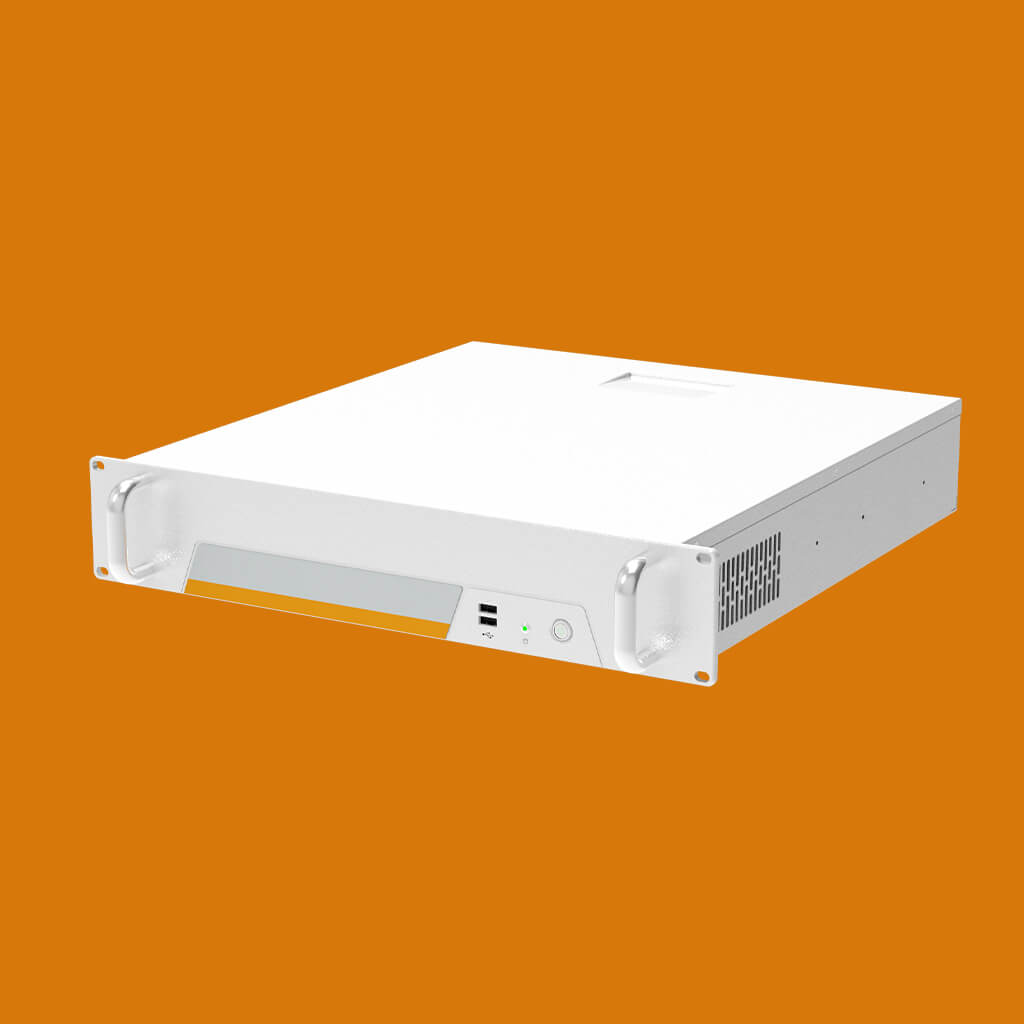

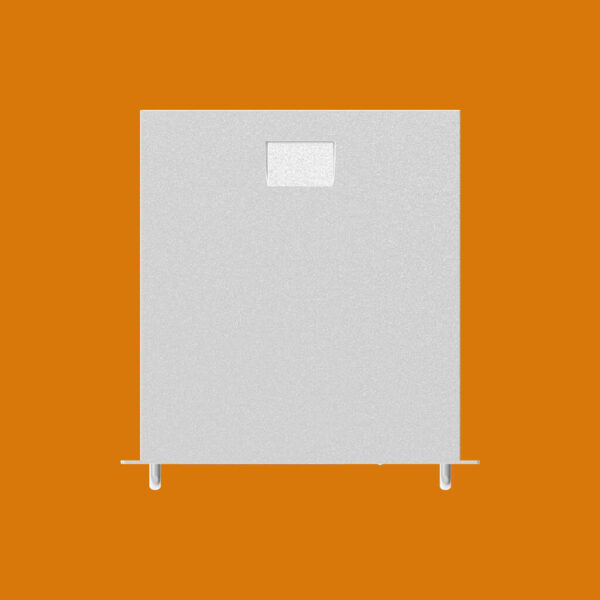

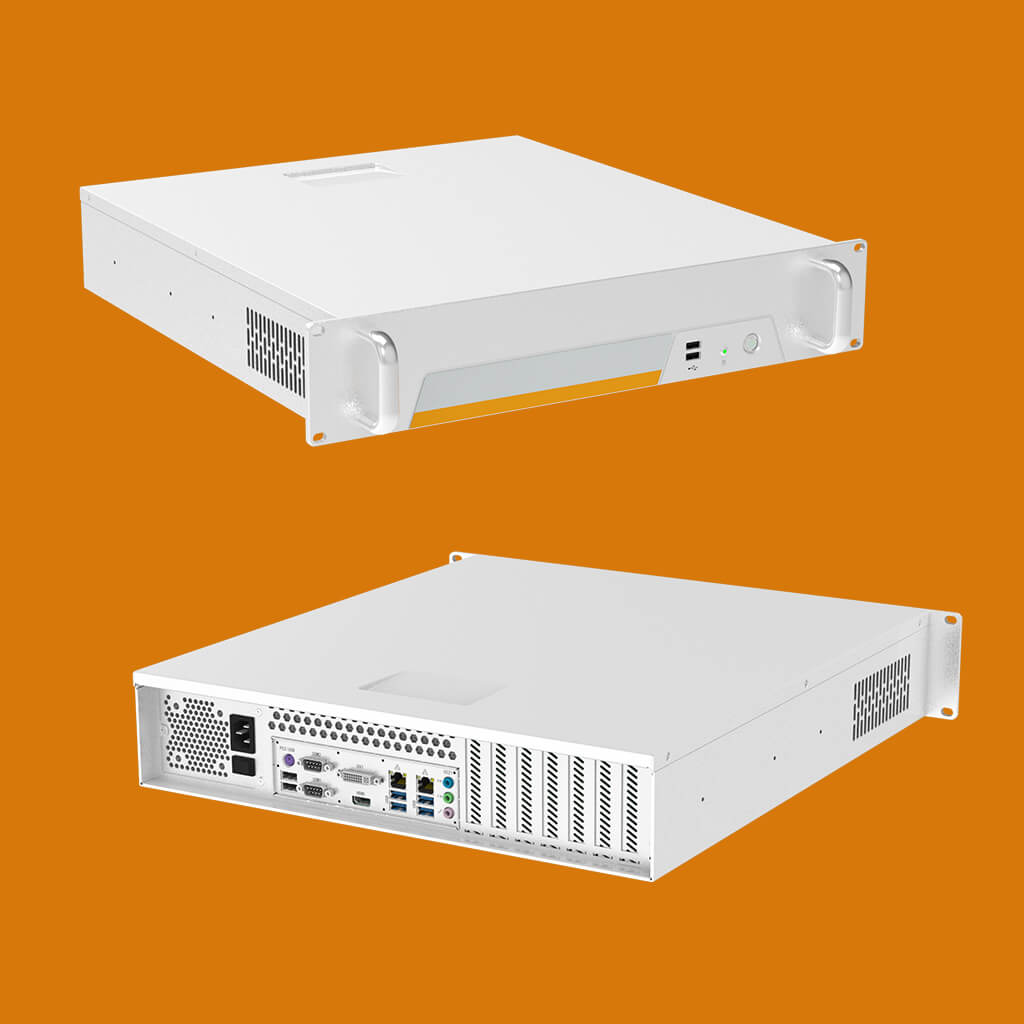

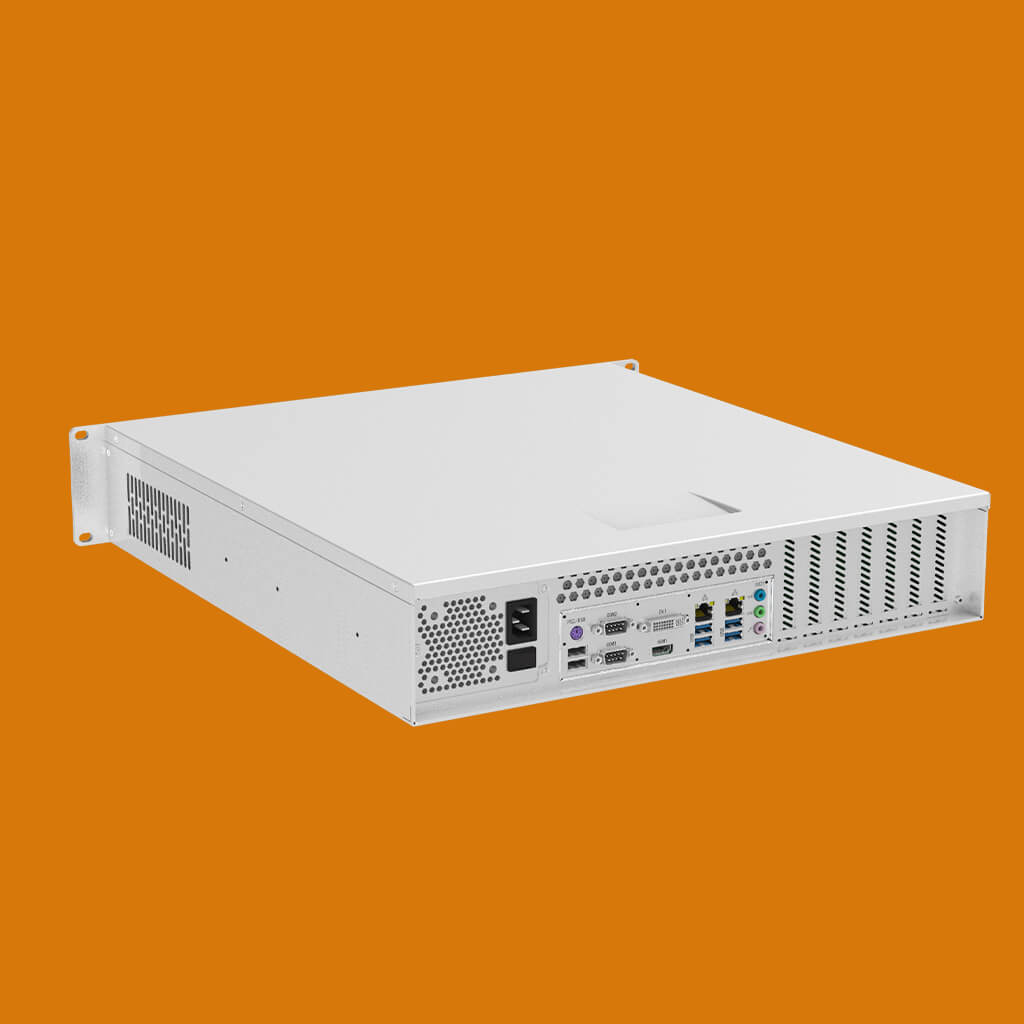

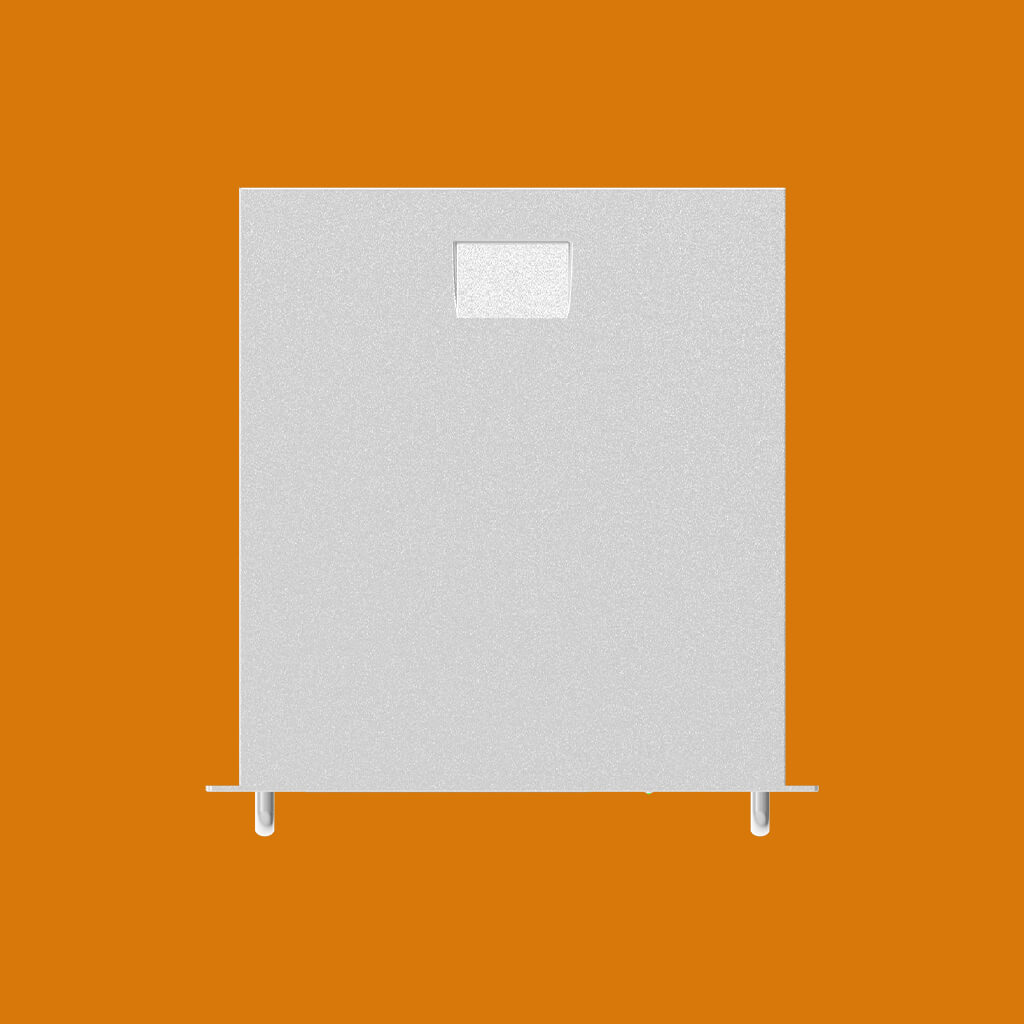

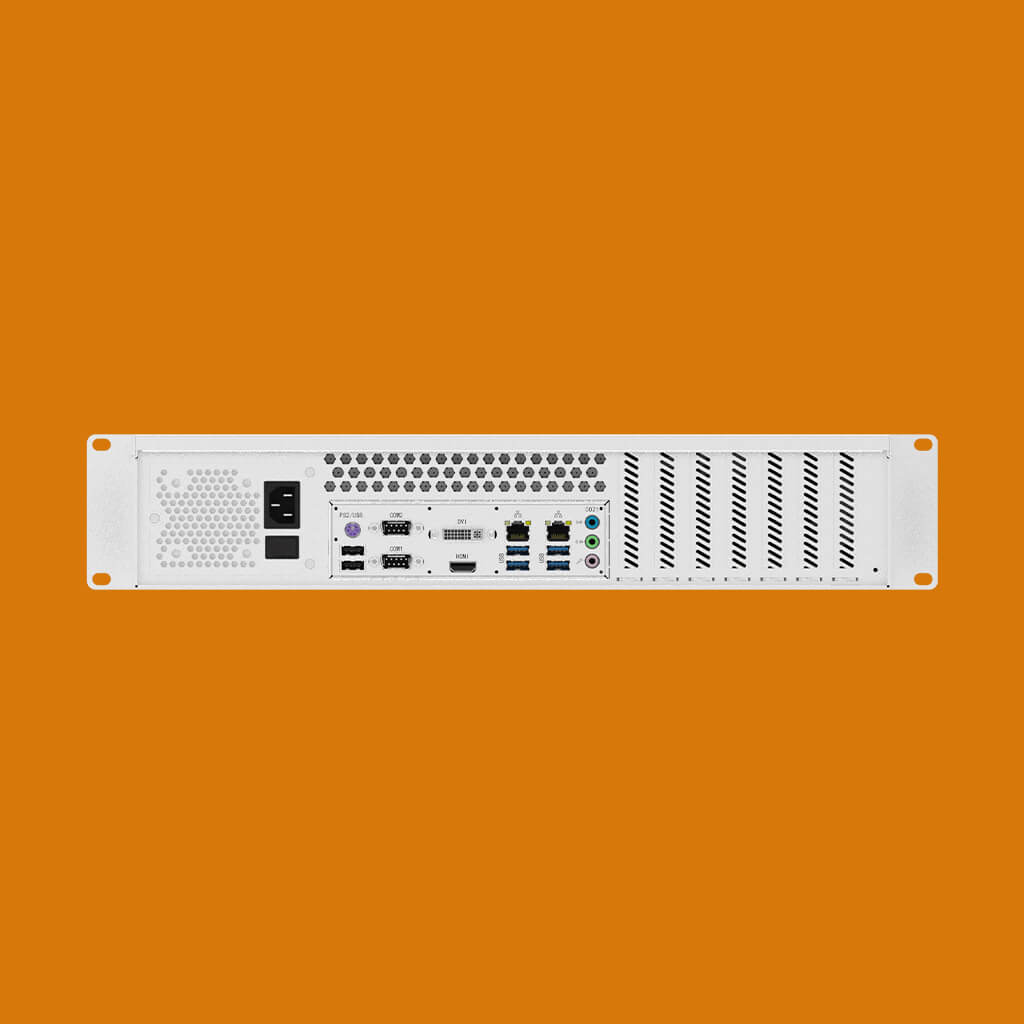

2U Rack mount Industrial Computer ABOX-U200 series

Key features:

– Support Intel® 4th~14th Gen. Core™ i7/i5/i3 Desktop CPU processors;
– Intel H81, H110, H610, Q670 industrial chipsets;
– 2* RJ45 GbE Ethernet ports;
– 4* DDR5 U-DIMM slots, max. support up to 192GB;
– 1* COM RS232 DB9 port;
– 4* SATA 3.0, 1* M.2 Key-M storage slots;
– 1* HDMI, 1* DVI-D, 1* VGA ports;
– 1* M.2 Key- E for wireless expansions;
– Front 2* USB, On-offf button, indicator design;
– Optional PCIe/PCI half-height expansion slots;
– Standard 2U power supply;
– PWM intelligent fan, with humanized design.

SKU: ABOX-U200 Series Category: Rack mount Industrial Computer Tags: industrial computer, 2U Industrial Computer, Rack mount industrial PC, 2U Rack mount, 2U Rack mount Industrial Computer

Description

The ABOX-U200 series Rack mount server is a 2U lower profile industrial computer that is designed for high density server applications. It offers flexibility in system configuration over a wide range of applications, such as server farm, data centers, industrial control and server projects.

The ABOX-U200 2U rack mount industrial computer is built from Intel powerful desktop CPU processors with Intel H81, H110, H610, Q670 chipsets. It also supports rich I/O interfaces, such as 2* GbE, 8* USB, 1* DVI, 1* HDMI, 1* VGA, 1* COM and Audio ports.

Ordering Information

Series	Description
ABOX-U200-H81	Intel 4th to 5th Gen. Core CPU processors, Intel H81 chipset, 2* GbE, 2* USB3.0, 6* USB2.0, 2COM, 1 HDMI, 1* DVI-D, 2U Power supply
ABOX-U200-H110A	Intel 6th to 9th Gen. Core CPU processors, Intel H110 chipset, 2* GbE, 3* USB3.0, 5* USB2.0, 2COM, 1 HDMI, 1* DVI-D, 2U Power supply
ABOX-U200-H610A	Intel 12th to 14th Gen. Core CPU processors, Intel H610 chipset, 2* GbE, 4* USB3.0, 4* USB2.0, 1COM, 1 HDMI, 1* DVI-D, 1* VGA, 2U Power supply
ABOX-U200-Q670A	Intel 12th to 14th Gen. Core CPU processors, Intel Q670 chipset, 2* GbE, 6* USB3.0, 2* USB2.0, 1COM, 1 HDMI, 1* DVI-D, 1* VGA, 2U Power supply

Models	ABOX-U200-H81
CPU	Intel 4^th /5^th Gen. Core i7/i5/i3, Pentium, Celeron Desktop CPUs; Max. 95W TDP; LGA1150
Chipset	Intel H81
BIOS	AMI UEFI BIOS (Support Watchdog Timer)
Memory	2* U-DIMM Slots, Dual Channel, DDR3 up to 1600Mhz; Max. up to 16GB (Single max. 8GB)
Graphics	Intel HD Graphics
Ethernet	2* RJ45; 1* Intel i210AT GbE chip, 1* Intel i218-V/LM GbE chip
Storage	1* 2.5” SATA3.0, 2* 2.5” SATA2.0
Storage	1* M.2 Key-M (SATA3.0, 2242/2260/2280)
Expansion Slots	1* PCIe x16 (PCIe Gen3 x16), Half height 1* PCIe x4 (PCIe Gen2 x2), Half height, colay signal with Mini-PCIe 1* PCIe x1 (PCIe Gen2 x1), Half height 4* PCI slots, Half height 1* Mini-PCIe (PCIe Gen 1 x1 + USB2.0, with 1* SIM card slot)
Rear I/O	2* RJ45
	2* USB3.0 (Type-A, 5Gbps,), 4* USB2.0 (Type-A)
	1* HDMI: Max. resolution up to 4096*2160 @24Hz
	1* DVI-D: Max. resolution up to 1920*1200 @60Hz
	2* RS232/RS485/RS422 (COM1/2, DB9/M, Full Lane, BIOS Switch)
	3* 3.5mm Jack (Line-out +Line-in+ Mic)
	1* PS/2
Front I/O	2* USB2.0 Type-A
	1* Power Button
	1* Power Indicator; 1* Storage Indicator
Internal I/O (Wafer)	1*USB2.0 wafer
	4* RS232 (COM 3/4/5/6, Full lanes)
	1* 16 bits GPIO (8* DI and 8* DO, Wafer)
	1 * LPT
	1* VGA (Max. resolution up to 1920*1200 @60Hz)
	3* SATA-III connector
	1* CPU Fan (Wafer); 2* SYS Fan (Wafer)
Power Supply	2U Power supply
OS	Windows 7/10/11
OS	Linux
Watch dog	Programmable via software from 1 to 255 second
Mechanical	Aluminum alloy, SGCC housing
	Rack mount, Desktop
	482.6mm * 475.7mm* 88.1mm
	Netweight:10kg
Environment	PWM Intelligent Fan
	Operating temp.: 0 ~+50C
	Storage temp.: -20 ~+70C
	Humidity: 10% to 90% RH (Non-Condersation)
	Vibration: IEC 60068-2-64 (3Gms @5~500Hz, random, 1hr/axis) with SSD
	Shock: IEC 60068-2-27 (30G, half sine, 11ms) with SSD
	Certification: CE

Models	ABOX-U200-H110A
CPU	Intel 6^th /7^th /8^th /9^th Gen. Core i7/i5/i3, Pentium, Celeron Desktop CPUs; Max. 95W TDP; LGA1151
Chipset	Intel H110
BIOS	AMI UEFI BIOS (Support Watchdog Timer)
Memory	2* U-DIMM Slots, Dual Channel, DDR4 up to 2666Mhz; Max. up to 64GB (Single max. 32GB)
Graphics	Intel HD Graphics
Ethernet	2* RJ45; 1* Intel i210AT GbE chip, 1* Intel i219-V/LM GbE chip
Storage	3* 2.5” SATA3.0
Storage	1* M.2 Key-M (SATA3.0, 2280)
Expansion Slots	1* PCIe x16 (PCIe Gen3 x16, 1^st slot), Half height 1* PCIe x4 (PCIe Gen2 x4, 3^rd slot), Half height, colay signal with Mini-PCIe 5* PCI slots (2^nd 4^th /5^th /6^th /7^th slots), Half height 1* Mini-PCIe (PCIe Gen 2 x1, with 1* SIM card slot)
Rear I/O	2* RJ45
	3* USB3.0 (Type-A, 5Gbps,), 3* USB2.0 (Type-A)
	1* HDMI: Max. resolution up to 4096*2160 @30Hz
	1* DVI-D: Max. resolution up to 1920*1200 @60Hz
	2* RS232/RS485/RS422 (COM1/2, DB9/M, Full Lane, BIOS Switch)
	3* 3.5mm Jack (Line-out +Line-in+ Mic)
	1* PS/2
Front I/O	2* USB2.0 Type-A
	1* Power Button
	1* Power Indicator; 1* Storage Indicator
Internal I/O (Wafer)	1*USB2.0 wafer
	4* RS232 (COM 3/4/5/6)
	1* 16 bits GPIO (8* DI and 8* DO, Wafer)
	1 * LPT
	1* VGA (Max. resolution up to 1920*1200 @60Hz)
	3* SATA-III connector
	1* CPU Fan (Wafer); 2* SYS Fan (Wafer)
Power Supply	2U Power supply
OS	Windows 7/10/11 (6^th /7^th Gen. CPUs); Windows 10/11 (8^th /9^th Gen. CPUs)
OS	Linux
Watch dog	Programmable via software from 1 to 255 second
Mechanical	Aluminum alloy, SGCC housing
	Rack mount, Desktop
	482.6mm * 475.7mm* 88.1mm
	Netweight:10kg
Environment	PWM Intelligent Fan
	Operating temp.: 0 ~+50C
	Storage temp.: -20 ~+70C
	Humidity: 10% to 90% RH (Non-Condersation)
	Vibration: IEC 60068-2-64 (3Gms @5~500Hz, random, 1hr/axis) with SSD
	Shock: IEC 60068-2-27 (30G, half sine, 11ms) with SSD
	Certification: CE

Models	ABOX-U200-H610A
CPU	Intel 12^th /13^th /14^th Gen. Core i7/i5/i3, Pentium, Celeron Desktop CPUs; 65W TDP; LGA1700
Chipset	Intel H610
BIOS	AMI UEFI BIOS (Support Watchdog Timer)
Memory	2* U-DIMM Slots, Dual Channel, DDR4 up to 3200Mhz; Max. up to 64GB (Single max. 32GB)
Graphics	Intel HD Graphics
Ethernet	2* RJ45; 1* Intel i226-V/LM 2.5GbE chip, 1* Intel i219-V/LM GbE chip
Storage	3* 2.5” SATA3.0
Storage	1* M.2 Key-M (SATA3.0, 2280)
Expansion Slots (Half-height)	1* PCIe x16 (PCIe Gen4 x16, 1^st slot) 3* PCIe x4 (PCIe Gen3x2, 3^rd /4^th /5^th slots) 3* PCI slots (2^nd /6^th /7^th slots)
Rear I/O	2* RJ45
	4* USB3.0 (Type-A, 5Gbps,), 2* USB2.0 (Type-A)
	1* HDMI: Max. resolution up to 3840*2160 @30Hz
	1* DVI-D: Max. resolution up to 1920*1200 @60Hz
	1* VGA: Max. resolution up to 1920*1200 @60Hz
	1* RS232 (COM1, DB9/M, Full Lane, BIOS Switch)
	3* 3.5mm Jack (Line-out +Line-in+ Mic)
	1* PS/2
Front I/O	2* USB2.0 Type-A
	1* Power Button
	1* Power Indicator; 1* Storage Indicator
Internal I/O (Wafer)	1* USB2.0 Vertical Type-A; 1*USB2.0 wafer
	3* RS232 (COM 2/5/6); 2* RS232/RS485 (COM3/4, jumper switch)
	1* 8 bits GPIO (4* DI and 4* DO, Wafer)
	3* SATA-III connector
	1* CPU Fan (Wafer); 2* SYS Fan (Wafer)
Power Supply	2U Power supply
OS	Windows 10/11
OS	Linux
Watch dog	Programmable via software from 1 to 255 second
TPM	Default fTPM, optional dTPM2.0
Mechanical	Aluminum alloy, SGCC housing
	Wall mount, Desktop
	482.6mm * 475.7mm* 88.1mm
	Netweight:10kg
Environment	PWM Intelligent Fan
	Operating temp.: 0 ~+50C
	Storage temp.: -20 ~+70C
	Humidity: 10% to 90% RH (Non-Condersation)
	Vibration: IEC 60068-2-64 (3Gms @5~500Hz, random, 1hr/axis) with SSD
	Shock: IEC 60068-2-27 (30G, half sine, 11ms) with SSD
	Certification: CE

Models	ABOX-U200-Q670A
CPU	Intel 12^th /13^th /14^th Gen. Core i7/i5/i3, Pentium, Celeron Desktop CPUs; Max. 125W TDP; LGA1700
Chipset	Intel Q670
BIOS	AMI UEFI BIOS (Support Watchdog Timer)
Memory	4* U-DIMM Slots, Dual Channel, DDR5 up to 4400Mhz; Max. up to 192GB (Single max. 48GB)
Graphics	Intel HD Graphics
Ethernet	2* RJ45; 1* Intel i210AT GbE chip, 1* Intel i219-V GbE chip
Storage	4* 2.5” SATA3.0
Storage	1* M.2 Key-M (PCIe Gen4 x4 + SATA3.0, NVMe/SATA Auto detect, 2280)
Expansion Slots	2* PCIe x16 (PCIe Gen4 x8, 1^st /4^th slots), Half height 3* PCIe x4 (PCIe Gen4x 4, 2^nd /3^th /5^th slots), Half height 2* PCI slots (6^th /7^th slots), Half height 1* M.2 Key-E slot (PCIe Gen3 x1 + USB2.0, 2230)
Rear I/O	2* RJ45
	6* USB3.0 (Type-A, 5Gbps)
	1* HDMI: Max. resolution up to 4096*2160 @30Hz
	1* DVI-D: Max. resolution up to 1920*1200 @60Hz
	1* VGA: Max. resolution up to 1920*1200 @60Hz
	1* RS232 (COM1, DB9/M, Full Lane, BIOS Switch)
	3* 3.5mm Jack (Line-out +Line-in+ Mic)
Front I/O	2* USB2.0 Type-A
	1* Power Button
	1* Power Indicator; 1* Storage Indicator
Internal I/O (Wafer)	1* USB2.0 Vertical Type-A; 2* USB 5Gbps; 2*USB2.0 wafer
	3* RS232 (COM 2/5/6); 1* RS232/RS485/RS422 (COM3, jumper switch); 1* RS232/RS485 (COM4, jumper)
	1* 8 bits GPIO (4* DI and 4* DO, Wafer)
	4* SATA-III connector
	1* CPU Fan (Wafer); 2* SYS Fan (Wafer)
Power Supply	2U Power supply
OS	Windows 10/11
OS	Linux
Watch dog	Programmable via software from 1 to 255 second
TPM	Default fTPM, optional dTPM2.0
Mechanical	Aluminum alloy, SGCC housing
	Wall mount, Desktop
	482.6mm * 475.7mm* 88.1mm
	Netweight:10kg
Environment	PWM Intelligent Fan
	Operating temp.: 0 ~+50C
	Storage temp.: -20 ~+70C
	Humidity: 10% to 90% RH (Non-Condersation)
	Vibration: IEC 60068-2-64 (3Gms @5~500Hz, random, 1hr/axis) with SSD
	Shock: IEC 60068-2-27 (30G, half sine, 11ms) with SSD
	Certification: CE

Dimensions & IO Interfaces

Dimensions:

IO Interface:

2U Rack mount Industrial Computer interface

2U Rack mount Industrial Computer ABOX-U200 series

Ordering Information

Technical Data

Dimensions & IO Interfaces

Related products

Mini 4U Industrial Computer ABOX-L350 series

Standard 19 inch 4U Rack mount Industrial PCs ABOX-U400 series

2U Rack mount industrial Computer ABOX-U231C
