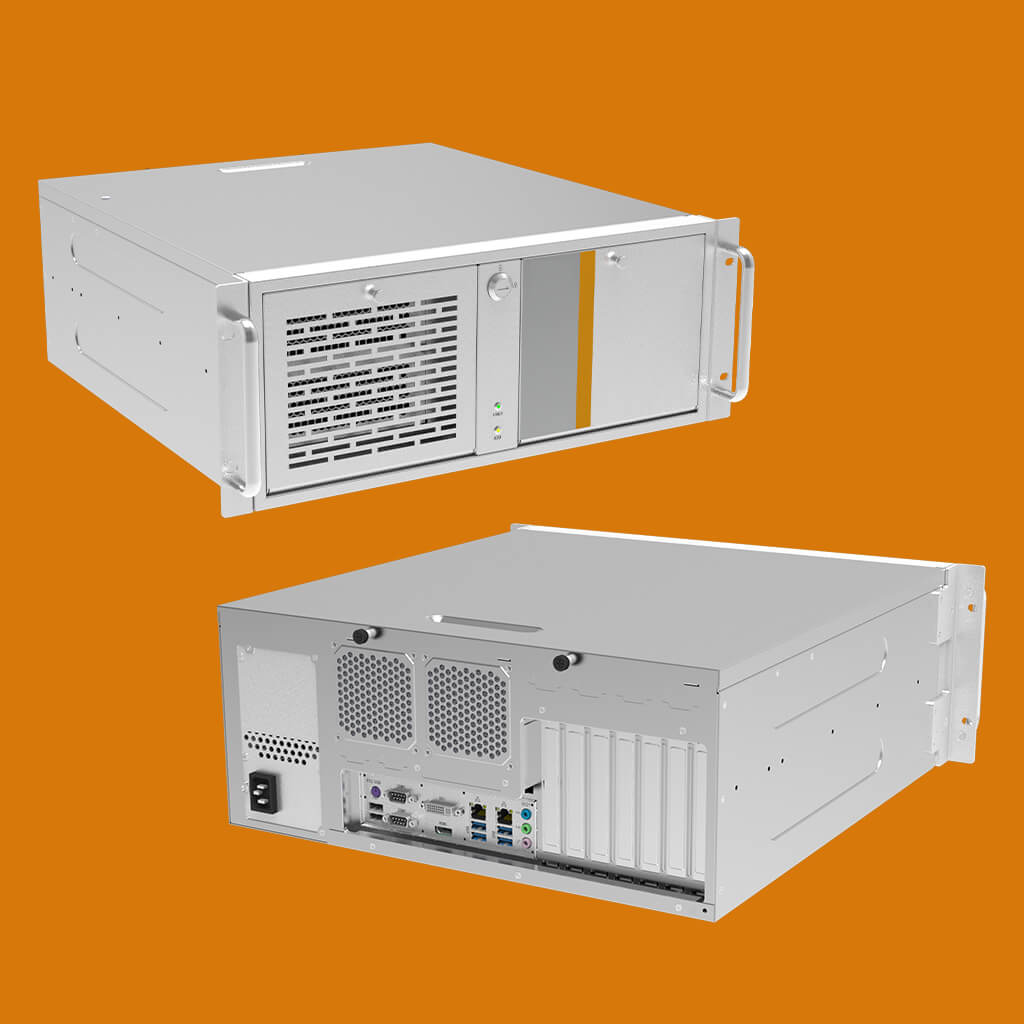

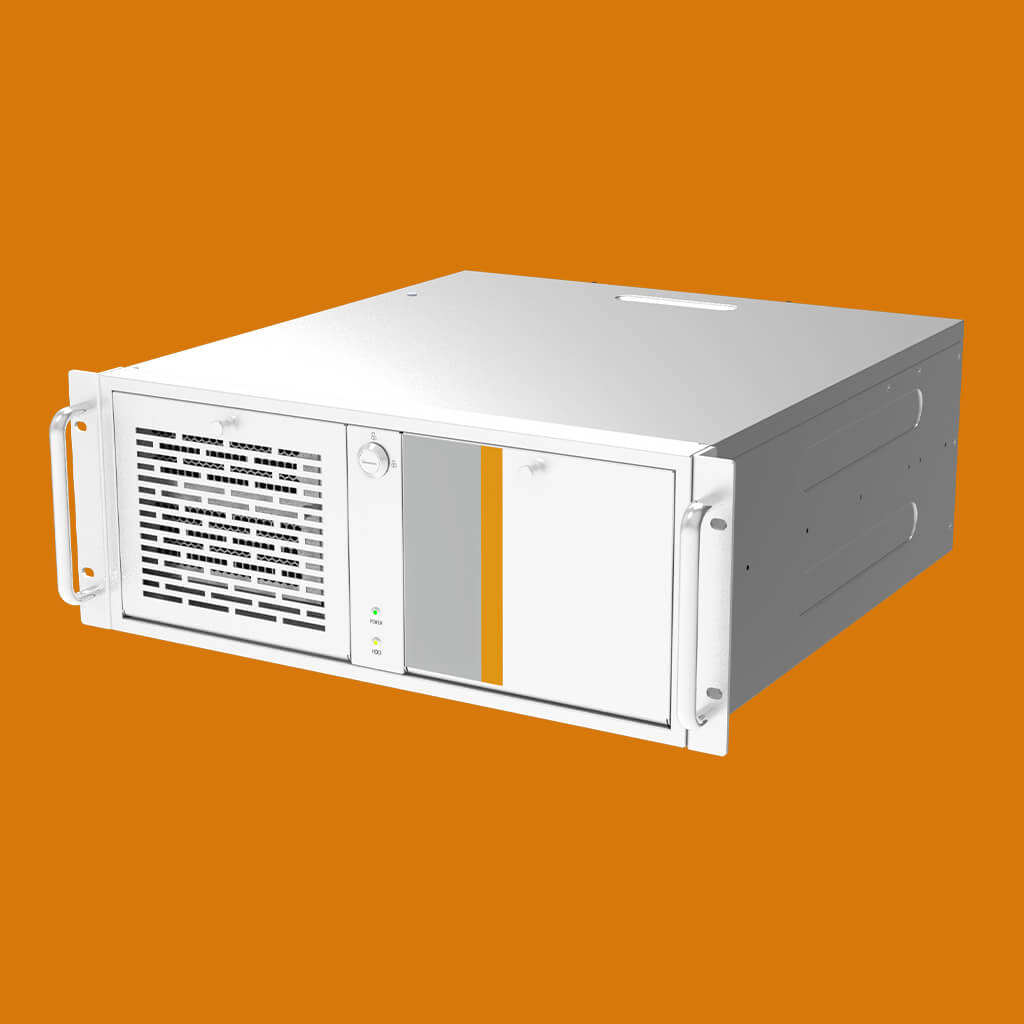

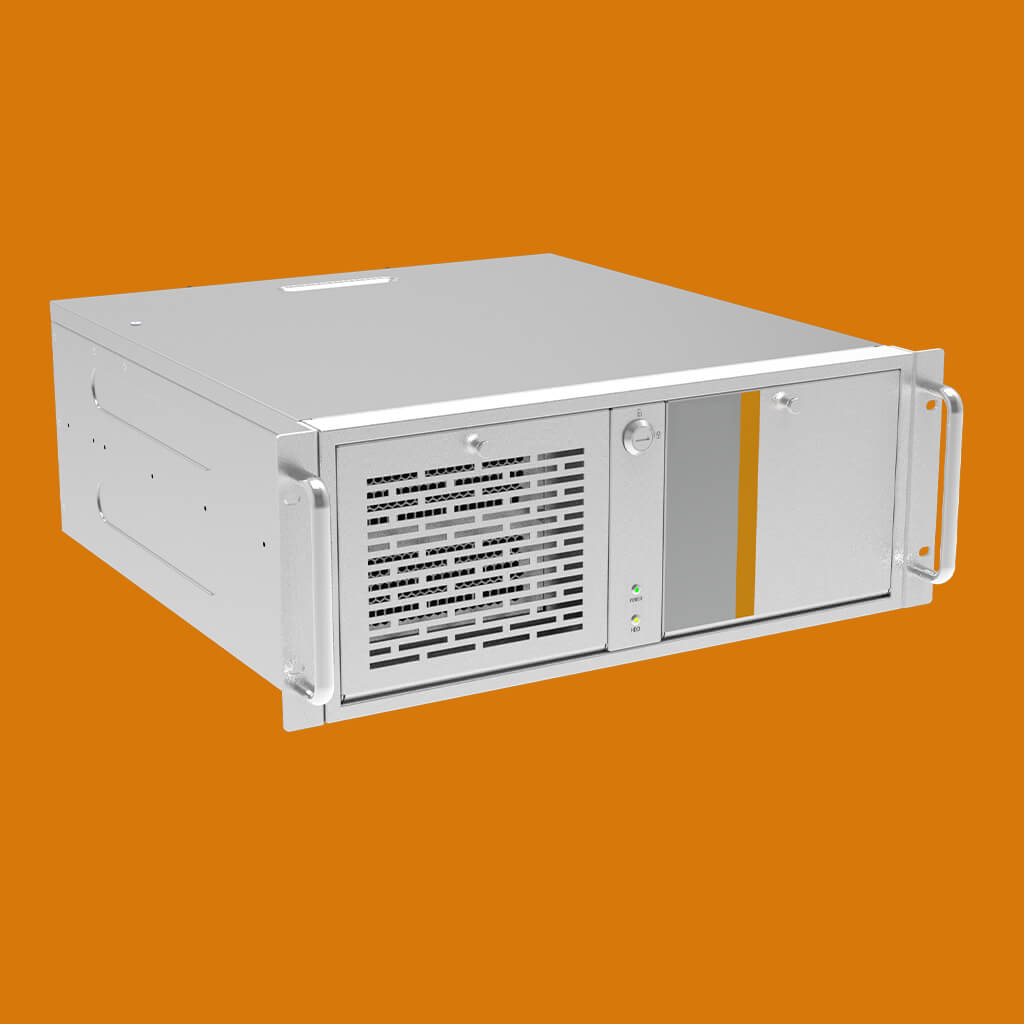

Standard 19 inch 4U Rack mount Industrial PCs ABOX-U400 series
Key features:
– Support Intel® Core™ 4th ~ 14th Gen. Desktop CPU processors;
– Intel H81, H110, Q670, Q870 industrial chipsets;
– 2* RJ45 GbE ethernet ports;
– 4* DDR5 U-DIMM slots, max. support up to 192GB;
– 1* RS232 DB9 COM ports;
– 4* SATA and 1* M.2 Key-M storage slots;
– 1* HDMI, 1* DVI-D, 1* VGA ports;
– 1* M.2 Key-E slot, optional 4G/Wi-Fi/BT wireless expansions;
– Front 2* USB design, lockable front plate, access protection;
– Optional max. support 7 PCIe/PCI expansion slots;
– Standard ATX mainboard, standard 4U rack power supply
– PWM intelligent fan.
"*" indicates required fields
Description
The ABOX-U400 Standard 4U Rack mount industrial computers are designed for industrial control and automation applications under harsh industrial environments. The Chassis is constructed of rugged and high strength housing.
Interally, ABOX-U400 rack mount industrial computers can be equipped with wide platforms from 4th Gen. to 14th Gen. CPU platforms. It designs with rich I/O interfaces, such as 2* RJ45, 6* USB, 1* HDMI, 1* DVI-D, 1* VGA, 1* COM. Moreover, it supports max. 7* PCIe(PCI) slots, and 1* M.2/Mini-PCIe for wireless functions. The ABOX-U400 series supports standard ATX form factors mainboards with Intel H81, H610, Q670 and newest Q870 chipsets.
Ordering Information
Ordering Information
| Series | Description |
| ABOX-U400-H81 | Intel 4th to 5th Gen. Core CPU processors, Intel H81 chipset, 2* GbE, 2* USB3.0, 6* USB2.0, 2*COM, 1* HDMI, 1* DVI-D, 4U Power supply |
| ABOX-U400-H110A | Intel 6th to 9th Gen. Core CPU processors, Intel H110 chipset, 2* GbE, 3* USB3.0, 5* USB2.0, 2*COM, 1* HDMI, 1* DVI-D, 4U Power supply |
| ABOX-U400-H610A | Intel 12th to 14th Gen. Core CPU processors, Intel H610 chipset, 2* GbE, 4* USB3.0, 4* USB2.0, 2*COM, 1* HDMI, 1* DVI-D, 4U Power supply |
| ABOX-U400-Q670A | Intel 12th to 14th Gen. Core CPU processors, Intel Q670 chipset, 2* GbE, 6* USB3.0, 2* USB2.0, 1*COM, 1* HDMI, 1* DVI-D, 4U Power supply |
| ABOX-U400-Q870A | Intel Core Ultra series 2 CPU processors, Intel Q870 chipset, 2* GbE, 2* USB3.1, 4* USB3.0, 2* USB2.0, 1*COM, 1* HDMI, 1* DP, 1* VGA, 4U Power supply |
Technical Data
Technical Data
ABOX-U400-H81 Specs:
| Models | ABOX-U400-H81 |
| CPU | Intel 12th /13th /14th Gen. Core i7/i5/i3, Pentium, Celeron Desktop CPUs; TDP: 65/95W; LGA1150 |
| Chipset | Intel H81 |
| BIOS | AMI UEFI BIOS (Support Watchdog Timer) |
| Memory | 2* U-DIMM Slots, Dual Channel, DDR3 up to 1600Mhz; Max. up to 16GB (Single max. 8GB) |
| Graphics | Intel HD Graphics |
| Ethernet | 2* RJ45; 1* Intel i210AT GbE chip, 1* Intel i218-LM/V GbE chip |
| Storage | 1* 2.5” SATA3.0; 2* 2.5” SATA2.0 |
| 1* M.2 Key-M (SATA3.0, 2242/2260/2280) | |
| Expansion Slots | 1* PCIe x16 slot (Gen3, x16 signal)
1* PCIe x4 slot (Gen2, x2 signal, default, co-lay with Mini-PCIe) 1* PCIe x1 slot (Gen2, x1 signal) 4* PCI slots 1* Mini-PCIe slot (PCIe x1 Gen2 + USB2.0, with 1* SIM card slot) |
| Rear I/O | 2* RJ45 |
| 2* USB3.0 (Type-A, 5Gbps), 4* USB2.0 (Type-A) | |
| 1* HDMI: Max. resolution up to 4096*2160 @24Hz | |
| 1* DVI-D: Max. resolution up to 1920*1200 @60Hz | |
| 2* RS232/RS485/RS422/ (COM1/2, DB9/M, Full Lane, BIOS Switch) | |
| 3* 3.5mm Jack (Line-out +Line-in+ Mic) | |
| 1* PS/2 (Keyboard & Mouse) | |
| Front I/O | 2* USB2.0 Type-A |
| 1* Power Button | |
| 1* Power Indicator; 1* Storage Indicator | |
| Internal I/O (Wafer) | 1* USB2.0 (Wafer) |
| 4* RS232 (COM3/4/5/6, header, Full lanes) | |
| 1* 16 bits GPIO (8* DI and 8* DO, Wafer) | |
| 1* VGA wafer: Max. up to 1920*1200 @60Hz; 1* eDP | |
| 1 * Front Audio (Line-out +Mic, header); 1* Speaker | |
| 1* LPT | |
| 3* SATA 7P connector | |
| 1* CPU Fan (Wafer); 2* SYS Fan (Wafer) | |
| Power Supply | ATX; AC Power supply based on ATX Power supply provided |
| OS | Windows 7/10/11 |
| Linux | |
| Watch dog | Programmable via software from 1 to 255 second |
| Mechanical | Aluminum alloy, SGCC housing |
| 4U Rack mount, Desktop | |
| 482.6mm * 464.5mm* 177mm | |
| Netweight:14.18kg | |
| Environment | PWM Intelligent Fan |
| Operating temp.: 0 ~+50C (Industrial SSD) | |
| Storage temp.: -20 ~+70C (Industrial SSD) | |
| Humidity: 10% to 90% RH (Non-Condersation) | |
| Vibration: IEC 60068-2-64 (3Gms @5~500Hz, random, 1hr/axis) with SSD | |
| Shock: IEC 60068-2-27 (30G, half sine, 11ms) with SSD | |
| Certifcation: CE |
ABOX-U400-H110A Specs:
| Models | ABOX-U400-H110A |
| CPU | Intel 6th /7th /8th /9th Gen. Core i7/i5/i3, Pentium, Celeron Desktop CPUs; Max. 95W TDP; LGA1151 |
| Chipset | Intel H110 |
| BIOS | AMI UEFI BIOS (Support Watchdog Timer) |
| Memory | 2* U-DIMM Slots, Dual Channel, DDR4 up to 2666Mhz; Max. up to 64GB (Single max. 32GB) |
| Graphics | Intel HD Graphics |
| Ethernet | 2* RJ45; 1* Intel i210AT GbE chip, 1* Intel i219-V/LM GbE chip |
| Storage | 3* 2.5” SATA3.0 |
| 1* M.2 Key-M (SATA3.0, 2280) | |
| Expansion Slots | 1* PCIe x16 (PCIe Gen3 x16, 1st slot)
1* PCIe x4 (PCIe Gen2 x4, 3rd slot, co-lay with Mini-PCIe signal) 5* PCI slots (2nd/4th /5th /6th /7th slots) 1* Mini-PCIe slot, with 1* SIM Card slot |
| Rear I/O | 2* RJ45 |
| 3* USB3.0 (Type-A, 5Gbps), 3* USB2.0 (Type-A) | |
| 1* HDMI: Max. resolution up to 4096*2160 @30Hz | |
| 1* DVI-D: Max. resolution up to 1920*1200 @60Hz | |
| 2* RS232/RS485/RS422/ (COM1/2, DB9/M, Full Lane, BIOS Switch) | |
| 3* 3.5mm Jack (Line-out +Line-in+ Mic) | |
| 1* PS/2 | |
| Front I/O | 2* USB2.0 Type-A |
| 1* Power Button | |
| 1* Power Indicator; 1* Storage Indicator | |
| Internal I/O (Wafer) | 1* USB2.0 (Wafer) |
| 4* RS232 (COM3/4/5/6, Wafer) | |
| 1* VGA jumper, max. support 1920*1200 @60Hz | |
| 1* 16 bits GPIO (8* DI and 8* DO, Wafer) | |
| 1* LPT | |
| 3* SATA-III connector | |
| 1* CPU Fan (Wafer); 2* SYS Fan (Wafer) | |
| Power Supply | ATX; 4U Power supply |
| OS | Windows 7/10/11 (6th /7th Gen. CPUs); Win 10/11 (8th /9th Gen. CPUs) |
| Linux | |
| Watch dog | Programmable via software from 1 to 255 second |
| Mechanical | Aluminum alloy, SGCC housing |
| 4U Rack mount, Desktop | |
| 482.6mm * 464.5mm* 177mm | |
| Netweight:14.18kg | |
| Environment | PWM Intelligent Fan |
| Operating temp.: 0 ~+50C | |
| Storage temp.: -20 ~+70C | |
| Humidity: 10% to 90% RH (Non-Condersation) | |
| Vibration: IEC 60068-2-64 (3Gms @5~500Hz, random, 1hr/axis) with SSD | |
| Shock: IEC 60068-2-27 (30G, half sine, 11ms) with SSD | |
| Certifcation: CE |
ABOX-U400-H610A Specs:
| Models | ABOX-U400-H610A |
| CPU | Intel 12th /13th /14th Gen. Core i7/i5/i3, Pentium, Celeron Desktop CPUs; 65W TDP; LGA1700 |
| Chipset | Intel H610 |
| BIOS | AMI UEFI BIOS (Support Watchdog Timer) |
| Memory | 2* U-DIMM Slots, Dual Channel, DDR4 up to 3200Mhz; Max. up to 64GB (Single max. 32GB) |
| Graphics | Intel HD Graphics |
| Ethernet | 2* RJ45; 1* Intel i225/i226-LM/V 2.5GbE chip, 1* Intel i219-V GbE chip |
| Storage | 3* 2.5” SATA3.0 |
| 1* M.2 Key-M (SATA3.0, 2280) | |
| Expansion Slots | [1]: 1* PCIe x16 (PCIe Gen4 x16, 1st slot)
[2]: 3* PCIe x4 (PCIe Gen3x2, 3rd /4th /5th slots) [3]: 3* PCI slots (2nd /6th /7th slots) 1* Mini-PCIe slot |
| Rear I/O | 2* RJ45 |
| 4* USB3.0 (Type-A, 5Gbps), 2* USB2.0 (Type-A) | |
| 1* HDMI: Max. resolution up to 4096*2160 @30Hz | |
| 1* DVI-D: Max. resolution up to 1920*1200 @60Hz | |
| 2* RS232/RS485/RS422/ (COM1/2, DB9/M, Full Lane, BIOS Switch) | |
| 3* 3.5mm Jack (Line-out +Line-in+ Mic) | |
| 1* PS/2 | |
| Front I/O | 2* USB2.0 Type-A |
| 1* Power Button | |
| 1* Power Indicator; 1* Storage Indicator | |
| Internal I/O (Wafer) | 1* USB2.0 (Wafer); 1* USB2.0 Type-A |
| 3* RS232 (COM2/5/6, Wafer); 2* RS232/RS485 (COM3/4, jumper selected) | |
| 1* 8 bits GPIO (4* DI and 4* DO, Wafer) | |
| 3* SATA-III connector | |
| 1* CPU Fan (Wafer); 2* SYS Fan (Wafer) | |
| Power Supply | AT/ATX; DC 9~36V input, P<240W; DC18~60V input, P<400W; 1* 4P connector, P=5.00/5.08 |
| OS | Windows 10/11 |
| Linux | |
| Watch dog | Programmable via software from 1 to 255 second |
| Mechanical | Aluminum alloy, SGCC housing |
| 4U Rack mount, Desktop | |
| 482.6mm * 464.5mm* 177mm | |
| Netweight:14.18kg | |
| Environment | PWM Intelligent Fan |
| Operating temp.: -20 ~+60C (Industrial SSD) | |
| Storage temp.: -40 ~+80C (Industrial SSD) | |
| Humidity: 10% to 90% RH (Non-Condersation) | |
| Vibration: IEC 60068-2-64 (3Gms @5~500Hz, random, 1hr/axis) with SSD | |
| Shock: IEC 60068-2-27 (30G, half sine, 11ms) with SSD | |
| Certifcation: CE |
ABOX-U400-Q670A Specs:
| Models | ABOX-U400-Q670A |
| CPU | Intel 12th /13th /14th Gen. Core i7/i5/i3, Pentium, Celeron Desktop CPUs; Max. 125W TDP; LGA1700 |
| Chipset | Intel Q670 |
| BIOS | AMI UEFI BIOS (Support Watchdog Timer) |
| Memory | 4* U-DIMM Slots, Dual Channel, DDR5 up to 4400Mhz; Max. up to 192GB (Single max. 48GB) |
| Graphics | Intel HD Graphics |
| Ethernet | 2* RJ45; 1* Intel i210AT GbE chip, 1* Intel i219-V GbE chip |
| Storage | 4* 2.5” SATA3.0 |
| 1* M.2 Key-M (PCIe Gen4 x4 + SATA3.0, NVMe/SATA auto-detect, 2280) | |
| Expansion Slots | 2* PCIe x16 (PCIe Gen4 x8, 1st /4th slots)
3* PCIe x4 (PCIe Gen4 x4, 2nd /3rd /5th slots) 2* PCI slots (6th /7th slots) 1* M.2 Key-E (PCIe Gen 3 x1 slot + USB2.0) slot |
| Rear I/O | 2* RJ45 |
| 6* USB3.0 (Type-A, 5Gbps) | |
| 1* HDMI: Max. resolution up to 4096*2160 @30Hz | |
| 1* DVI-D: Max. resolution up to 1920*1200 @60Hz | |
| 1* VGA: Max. resolution up to 1920*1200 @60Hz | |
| 1* RS232 (COM1, DB9/M, Full Lane, BIOS Switch) | |
| 3* 3.5mm Jack (Line-out +Line-in+ Mic) | |
| 1* PS/2 | |
| Front I/O | 2* USB2.0 Type-A |
| 1* Power Button | |
| 1* Power Indicator; 1* Storage Indicator | |
| Internal I/O (Wafer) | 1* USB2.0 Vertical Type-A; 2* USB 5Gbps wafer; 2* USB2.0 wafer |
| 3* RS232 (COM2/5/6, Wafer); 1* RS232/RS485/RS422 (COM3, jumper); 1* RS232/RS485 (COM4, jumper) | |
| 1* 8 bits GPIO (4* DI and 4* DO, Wafer) | |
| 4* SATA-III connector | |
| 1* CPU Fan (Wafer); 2* SYS Fan (Wafer) | |
| Power Supply | ATX; 4U Power supply |
| OS | Win 10/11 |
| Linux | |
| Watch dog | Programmable via software from 1 to 255 second |
| TPM | Default fTPM, optional dTPM2.0 |
| Mechanical | Aluminum alloy, SGCC housing |
| 4U Rack mount, Desktop | |
| 482.6mm * 464.5mm* 177mm | |
| Netweight:14.18kg | |
| Environment | PWM Intelligent Fan |
| Operating temp.: 0 ~+50C | |
| Storage temp.: -20 ~+70C | |
| Humidity: 10% to 90% RH (Non-Condersation) | |
| Vibration: IEC 60068-2-64 (3Gms @5~500Hz, random, 1hr/axis) with SSD | |
| Shock: IEC 60068-2-27 (30G, half sine, 11ms) with SSD | |
| Certifcation: CE |
ABOX-U400-Q870A Specs:
| Models | ABOX-U400-Q870A |
| CPU | Intel Core Ultra (series 2) Desktop CPUs; Max. 125W TDP; LGA1851 |
| Chipset | Intel Q870 |
| BIOS | AMI UEFI BIOS (Support Watchdog Timer) |
| Memory | 4* U-DIMM Slots, Dual Channel, DDR5 up to 5600Mhz; Max. up to 192GB (Single max. 48GB) |
| Graphics | Intel HD Graphics |
| Ethernet | 2* RJ45; 1* Intel i210AT GbE chip, 1* Intel i219-V GbE chip |
| Storage | 4* 2.5” SATA3.0 |
| 1* M.2 Key-M (PCIe Gen4 x4 + SATA3.0, NVMe/SATA auto-detect, 2280) | |
| Expansion Slots | 1* PCIe x16 (PCIe Gen5 x8, 1st slot)
1* PCIe x16 (PCIe Gen4 x8, 4th slot) 4* PCIe x4 (PCIe Gen4 x4, 2nd /3rd /5th /7th slots) 1* PCI slots (6th slot) 1* M.2 Key-E 2230 (PCIe Gen4 x1 slot + USB2.0) slot |
| Rear I/O | 2* RJ45 |
| 2* USB(Type-A, 10Gbps); 4* USB3.0 (Type-A, 5Gbps); 2* USB2.0 | |
| 1* HDMI: Max. resolution up to 4096*2160 @60Hz | |
| 1* DP: Max. resolution up to 4096*2160 @60Hz | |
| 1* VGA: Max. resolution up to 1920*1200 @60Hz | |
| 1* RS232 (COM1, DB9/M, Full Lane, BIOS Switch) | |
| 3* 3.5mm Jack (Line-out +Line-in+ Mic) | |
| Front I/O | 2* USB2.0 Type-A |
| 1* Power Button | |
| 1* Power Indicator; 1* Storage Indicator | |
| Internal I/O (Wafer) | 2* USB2.0 Vertical Type-A; 1* USB2.0 wafer |
| 3* RS232 (COM2/5/6, Wafer); 1* RS232/RS485/RS422 (COM3, jumper); 1* RS232/RS485 (COM4, jumper) | |
| 1* 8 bits GPIO (4* DI and 4* DO, Wafer) | |
| 4* SATA-III connector | |
| 1* CPU Fan (Wafer); 2* SYS Fan (Wafer) | |
| Power Supply | ATX; 4U Power supply |
| OS | Win 10/11 |
| Linux | |
| Watch dog | Programmable via software from 1 to 255 second |
| TPM | Default fTPM, optional dTPM2.0 |
| Mechanical | Aluminum alloy, SGCC housing |
| 4U Rack mount, Desktop | |
| 482.6mm * 464.5mm* 177mm | |
| Netweight:14.18kg | |
| Environment | PWM Intelligent Fan |
| Operating temp.: 0 ~+50C | |
| Storage temp.: -20 ~+70C | |
| Humidity: 10% to 90% RH (Non-Condersation) | |
| Vibration: IEC 60068-2-64 (3Gms @5~500Hz, random, 1hr/axis) with SSD | |
| Shock: IEC 60068-2-27 (30G, half sine, 11ms) with SSD | |
| Certifcation: CE |
Dimensions & IO Interfaces
Dimensions & IO Interfaces

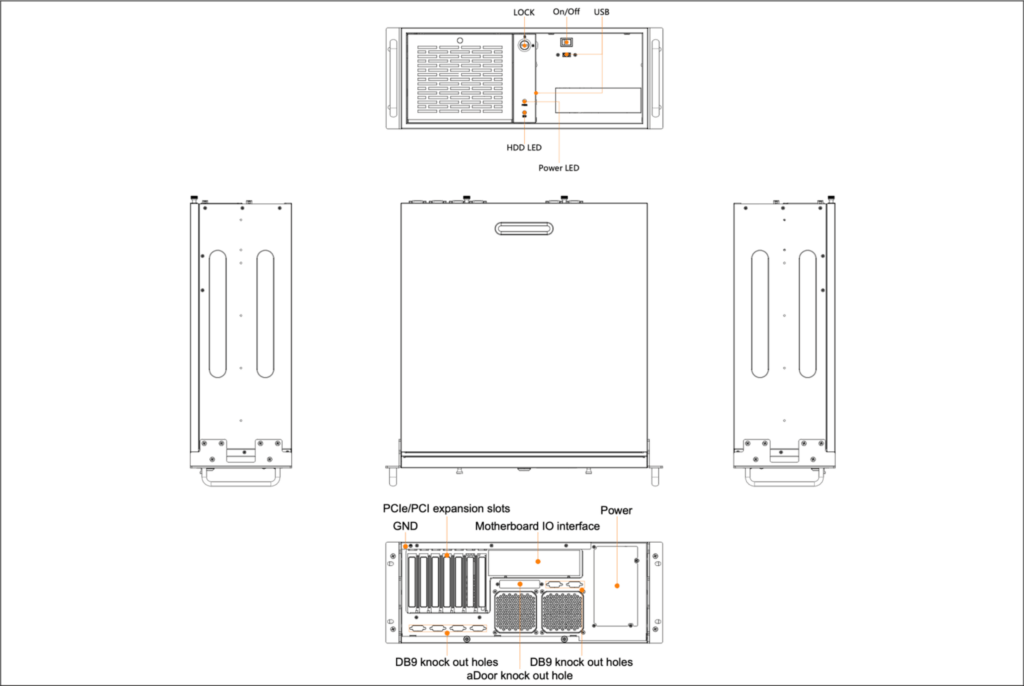

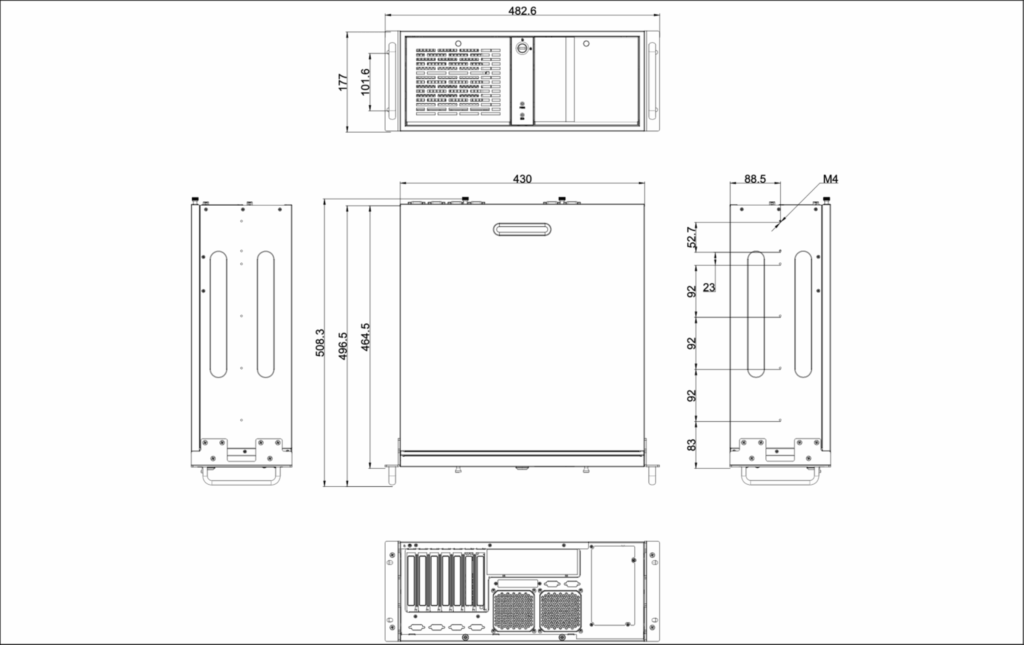

Dimensions:

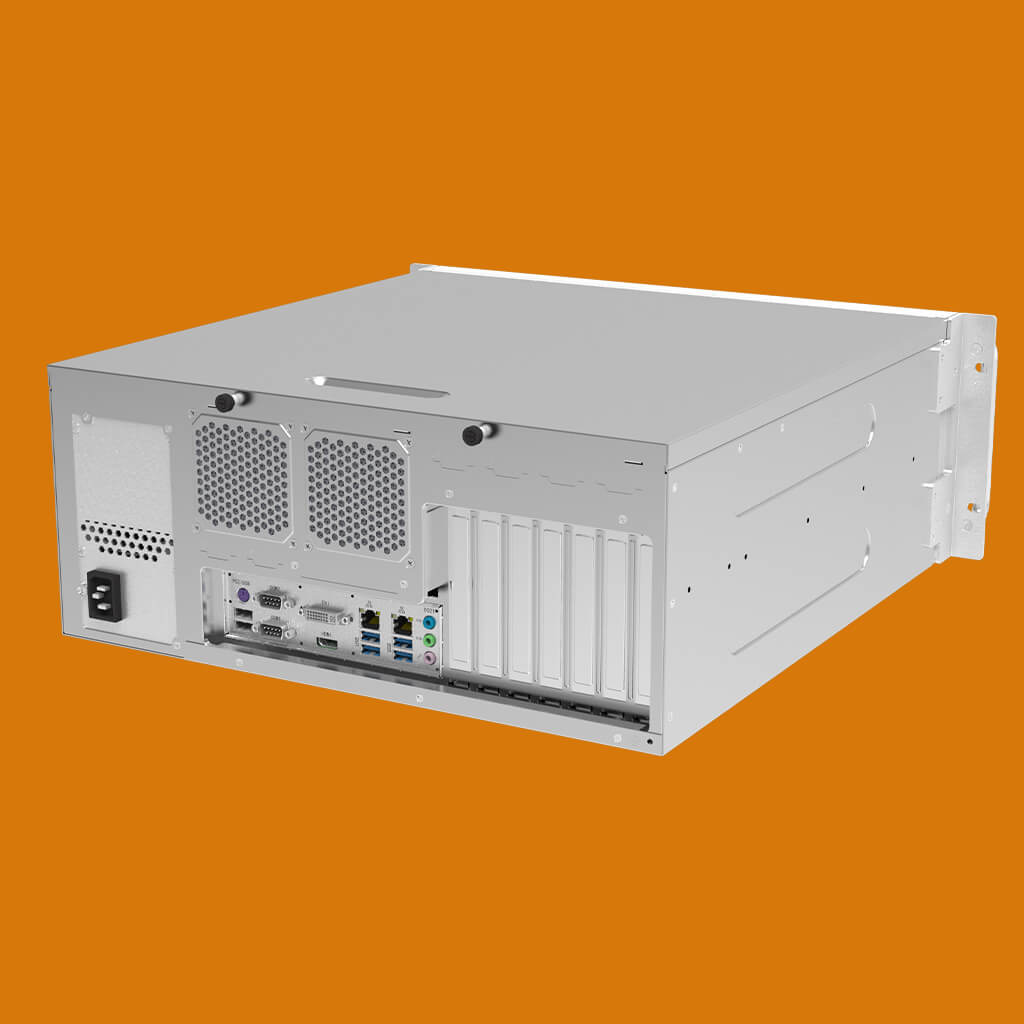

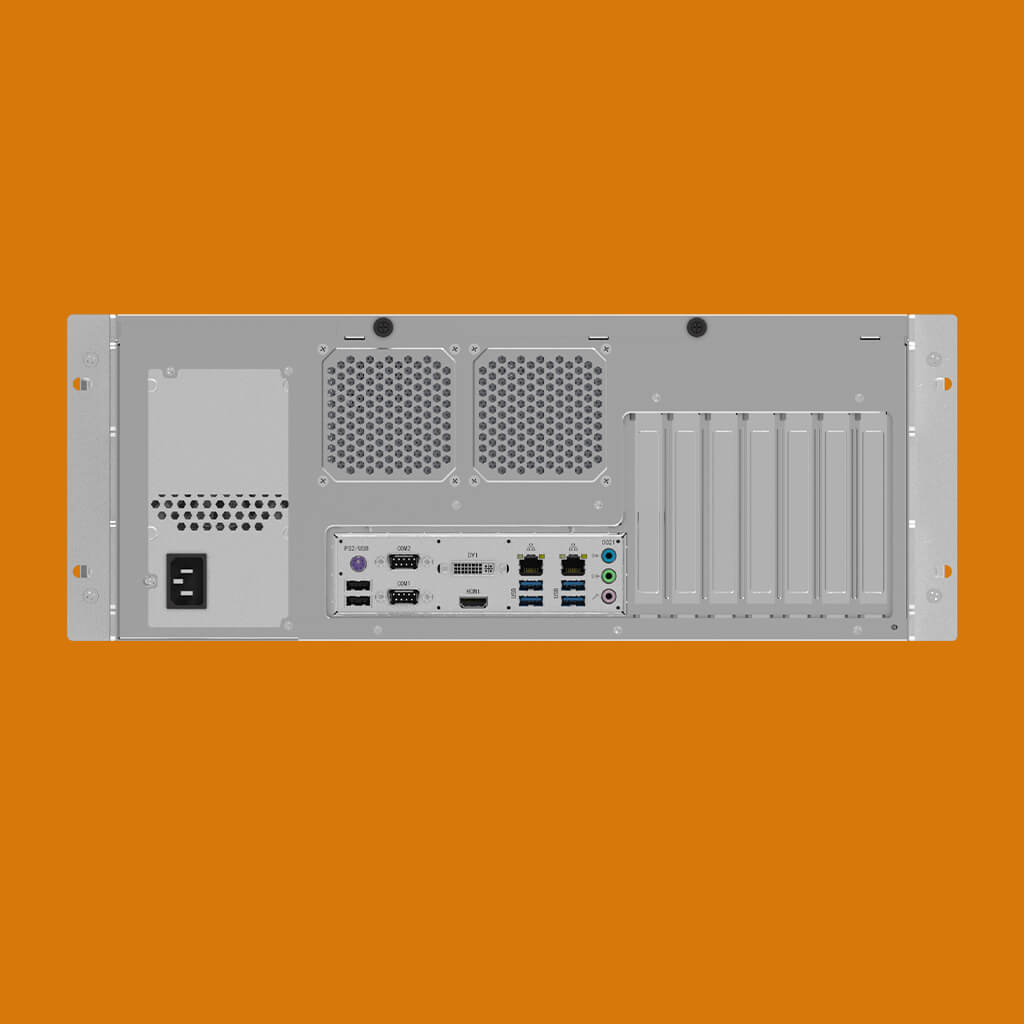

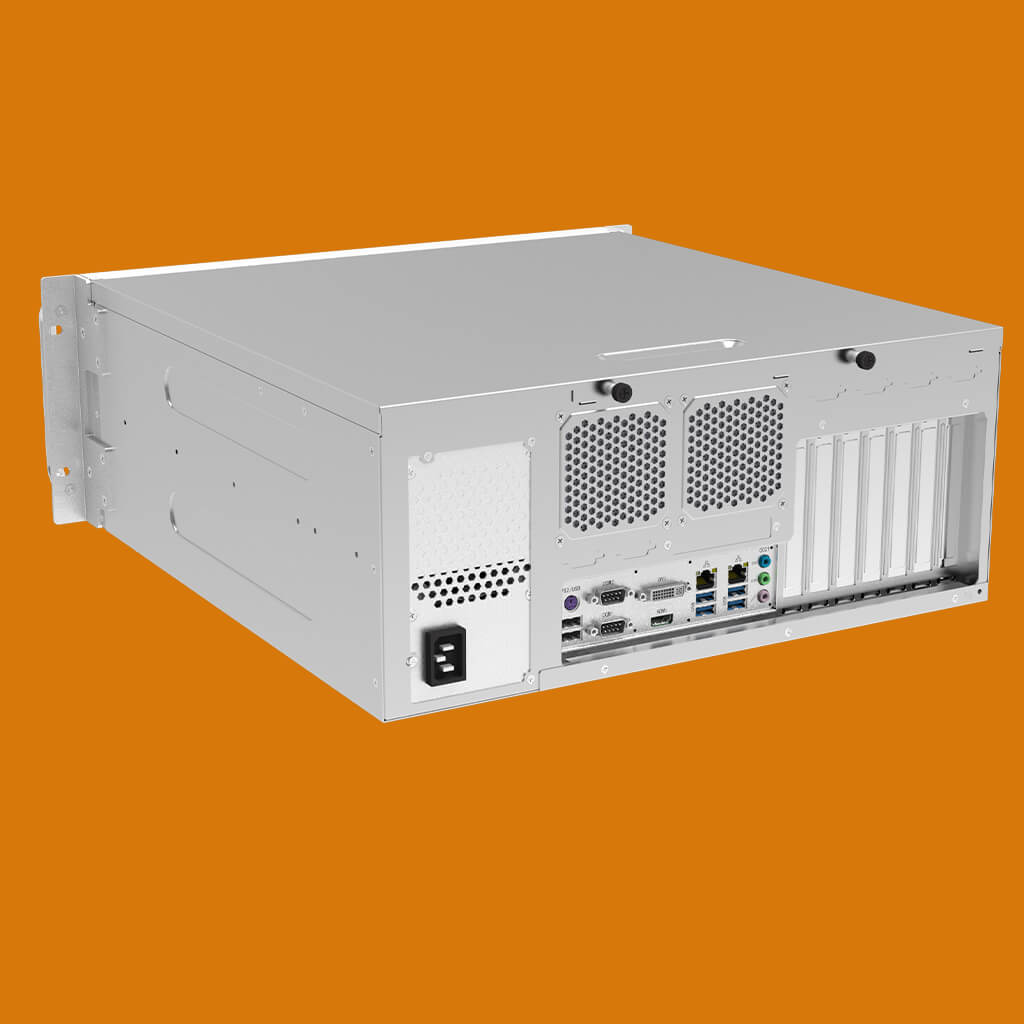

IO Interface:
