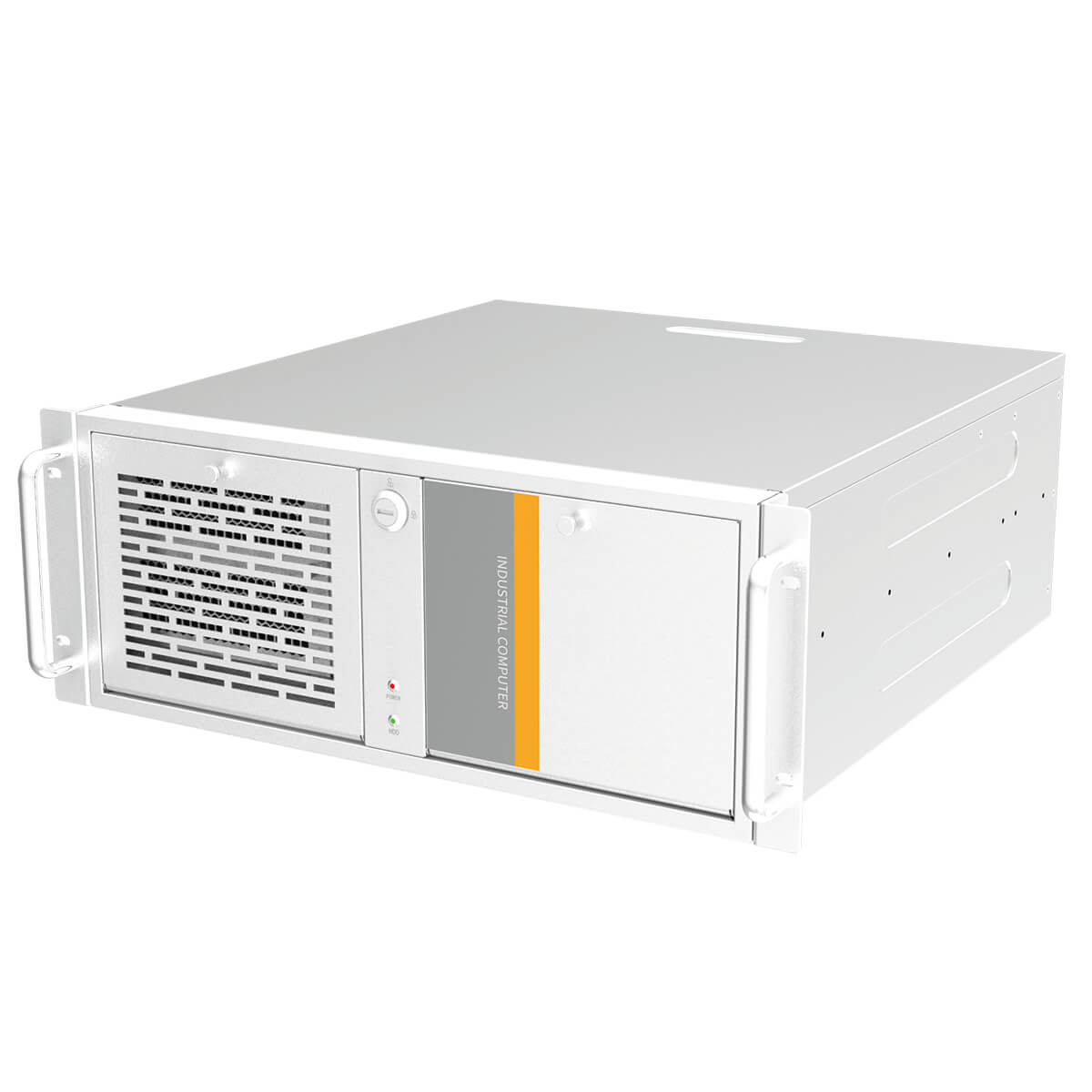

4U 19-inch Rack Mount H310C industrial PCs ABOX-U431C
Support Intel® 6th/7th/8th/9th Core™ i7/i5/i3, Pentium, Celeron Desktop multicore processors;
Intel H310C industrial chipset, TDP=6W;
2* DDR4 U-DIMM, support 2666 Mhz, Max. up to 64GB;
3* SATA and 1* M.2 Storage slot;
2* GLAN, 4* USB3.2, 4* USB2.0, 6* COM, PS/2, 1* HDMI, 1* DVI;
Front 2* USB design, Lockable front plate, Access protection;
Max. support NVIDIA GeForce GTX3090 Graphic card.
"*" indicates required fields
Mainkco ABOX-U431C model is a standard 4U 19 inch Rack mount edge computing Computer product. ABOX-U431C model support Intel 6th to 9th Gen. Desktop Core i3/i5/i7, Pentium, Celeron multi-core processors, with rich IO interfaces: 2 GbE, 4 USB3.2, 4 USB2.0, 6 COM, 1 HDMI, 1 VGA, 1 DVI, Audio… This mini 4U industrial computer have flexible expansion with 1* Mini-PCIe and Mainkco ADoor slots. It optional support rich PCIe and PCI expansion options.
It supports wall-mount and desktop installation methods, and is suitable for various types of industrial and intelligent places. At the same time, combined with the modular design concept, through a simple combination of modules, combined with the expansion card slot, it can be freely and flexibly expanded to form a variety of product configurations with different interfaces and different performance, which can be widely used in communications, finance, electricity, transportation, Medical, industrial automation, machine vision and AI computing, Smart City and other intelligent fields and other fields.
Technical Data
| System | |
| CPU | Intel® 6th to 9th Core™ i3/i5/i7, Pentium, Celeron Desktop LGA1151 CPUs, Max. TDP=95W |
| Chipset | Intel® H310C Chipset, TDP=6W |
| Memory | 2 x DDR4 U-DIMM, 2400/2666 MHz, Dual channels, Max. up to 64GB |
| Storage | 3 x 2.5” SATA3.0, 1x M.2 |
| Display | 1 x HDMI (Max. support resolution: 4096×2160, @ 30Hz) |
| 1 x DVI-D (Max. support resolution: 1920×1200, @60Hz) | |
| Network | 2 x Intel® Ethernet Connection; LAN1: I211, LAN2: I219 |
| Wireless | 1 x Mini-PCIE (Optional support 3G/4G/LTE, Wi-FI/BT expansion)
1 x SIM slot |
| Audio | 1 x Mic-in + 1 x Line-out (Realtek ALC 662) |
| USB | 4 x USB 2.0 (Type-A), 4x USB3.2 (Type-A) |
| PS/2 | 1x PS/2 |
| COM | 2 x RS232/RS485/RS422 (COM1/COM2, DB9), 4x RS232 (COM3/4/5/6, jumper) |
| GPIO | Optional 16x GPIO |
| Expansion | 1x PCIe 3.0 x16 slot |
| 1x PCIe 2.0 x4 slot (Gen2 x4) | |
| 5x PCI slots (32-bit / 33 Mhz) | |
| AI Computing | Max. support NVIDIA GeForce GTX3090 (PCIe 16x) |
| Power | AC Input, 110 ~ 240V, max. support power consumption 125W (Not include expansion card) |
| LED/Switch | 1 x power button (including status LED light) |
| Watchdog | Programmable 255 seconds |
| OS | 6th Core™: Windows 7/8.1/10, 32/64 bits, Linux |
| 7th Core™: Windows 7/8.1/10, 64 bits, Linux | |
| 8th /9th Core™: Windows 10 64 bits, Linux | |
| RAID | 0, 1,5 |
| Structure | |
| Material | SGCC |
| Treatment | Hard anodizing treatment |
| Color | Silver white |
| Cooling | PWM intelligent fan |
| Weight | 14.18kg (Net weight) |
| Dimension | 482.6mm(L) x 177mm(W) x 464.5mm(H) |
| Mounting | Desktop, 4U rack mount |
| Environmental | |
| Operation temp. | Operating temp.: -20~60°C (Industrial SSD)
Operating temp.: 0~50°C (Commercial SSD) |
| Storage temp. | Storage temp.: -40~80°C |
| Humidity | 10%~90%@40°C (non-condensation) |
| Vibration | SSD：3Grms@5~500Hz，random，1 hr/axis；
2.5〞HDD：1Grms@5~500Hz，random，1 hr/axis |
| Shock | 10G/peak (11ms sec) |

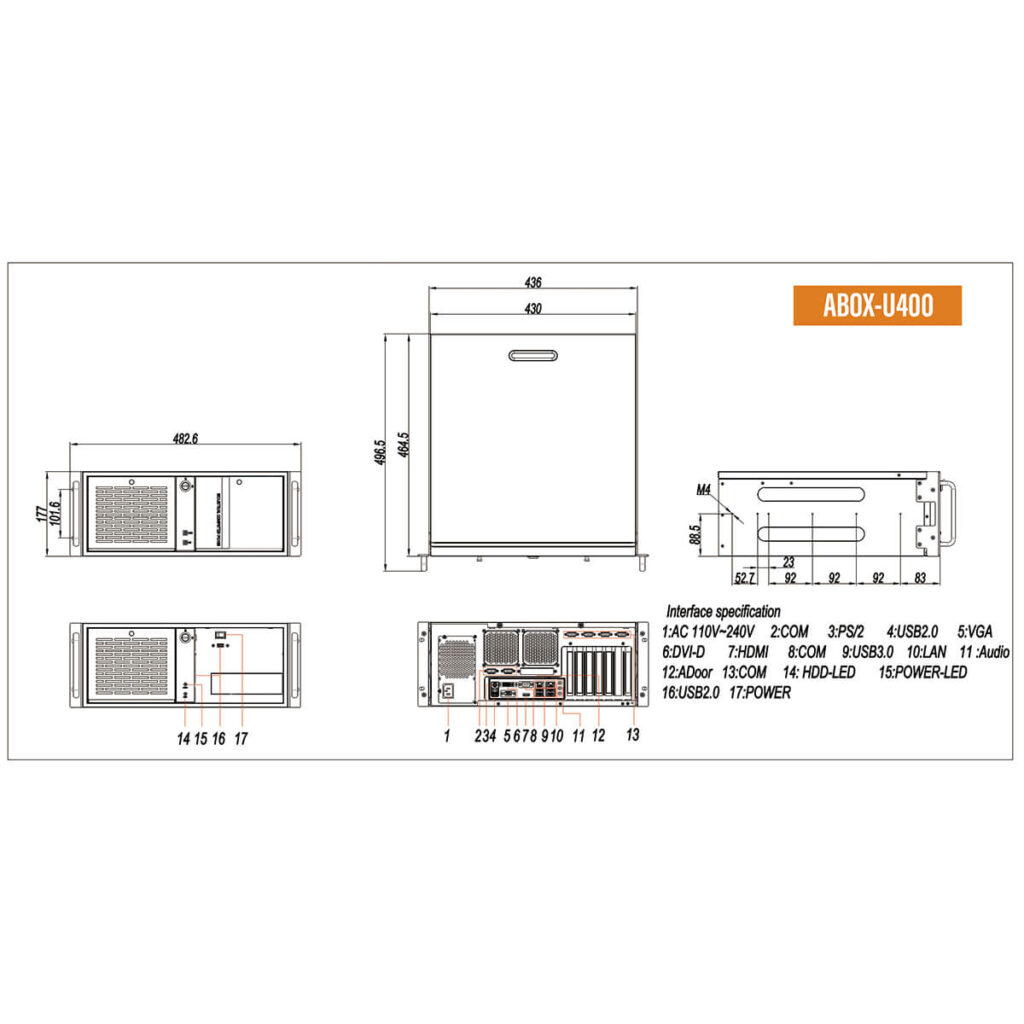

Product Dimension
