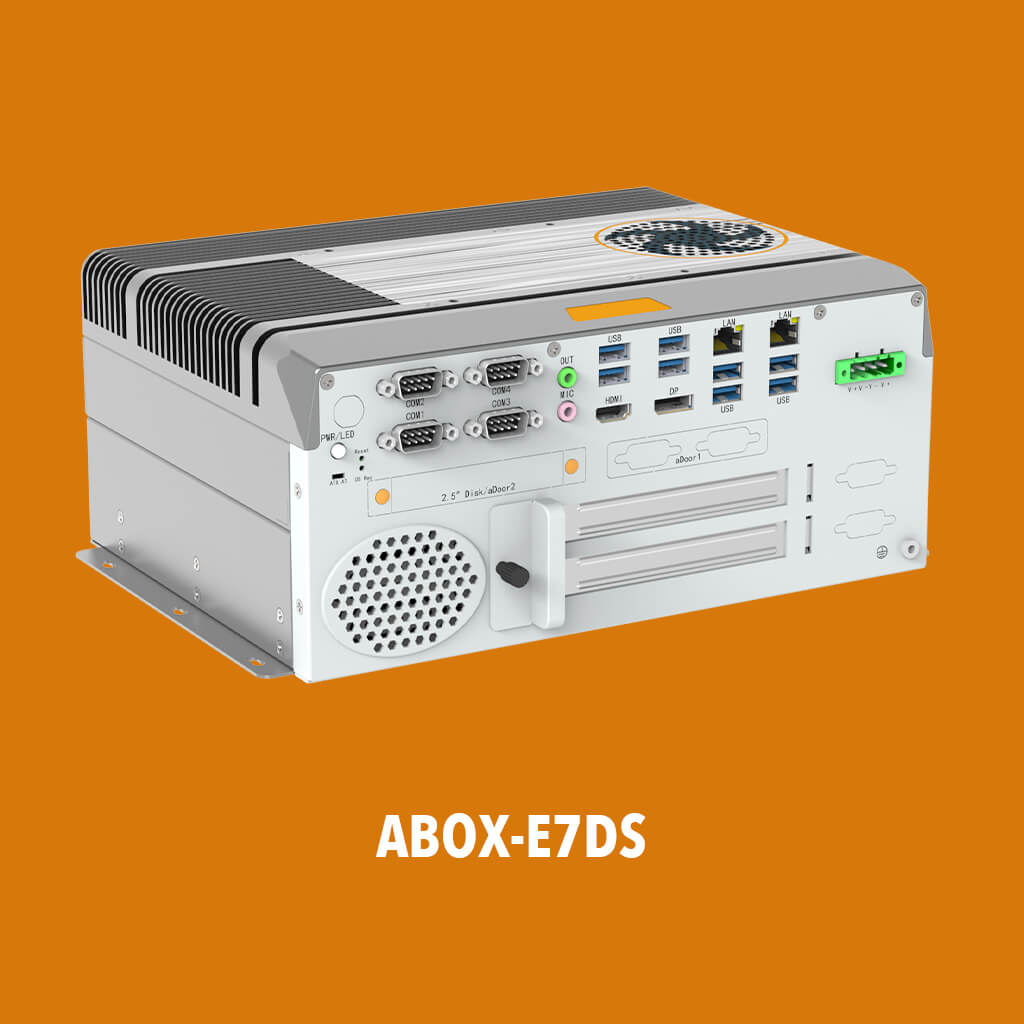

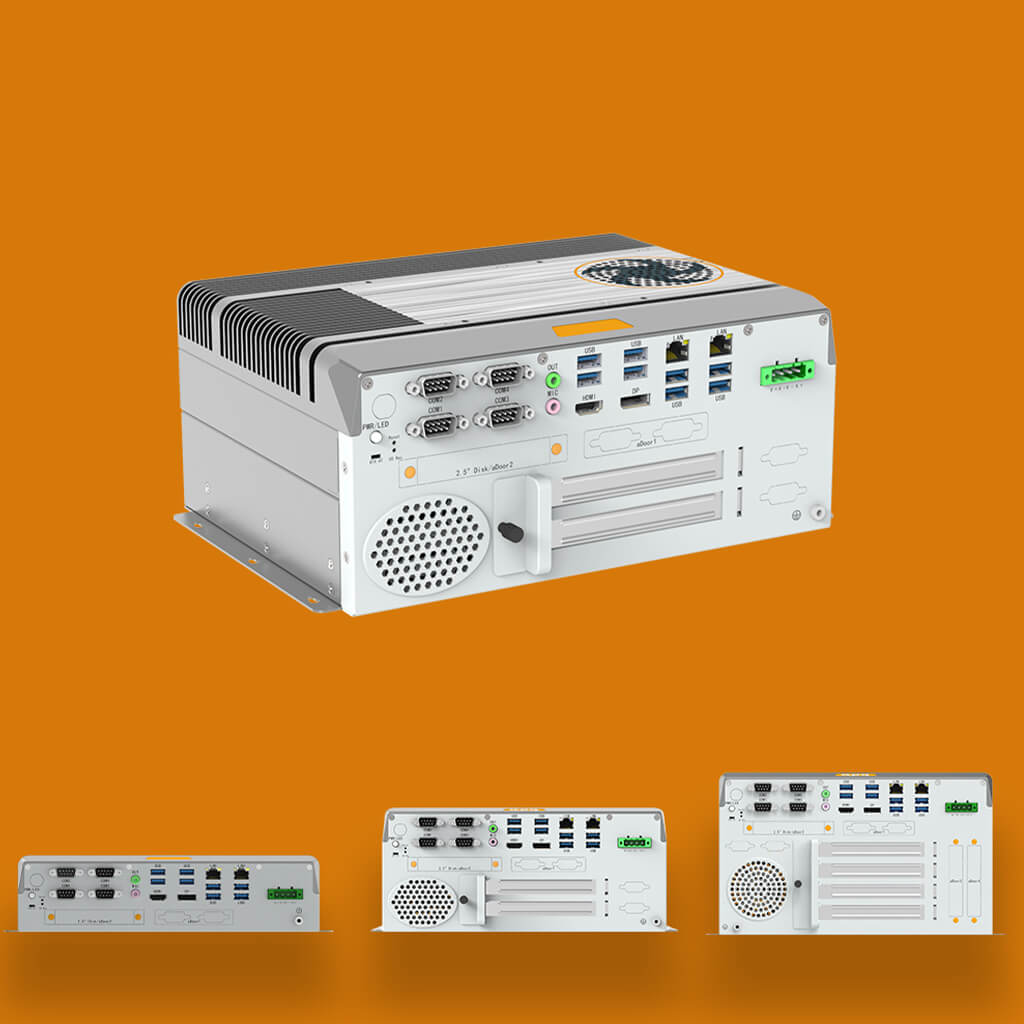

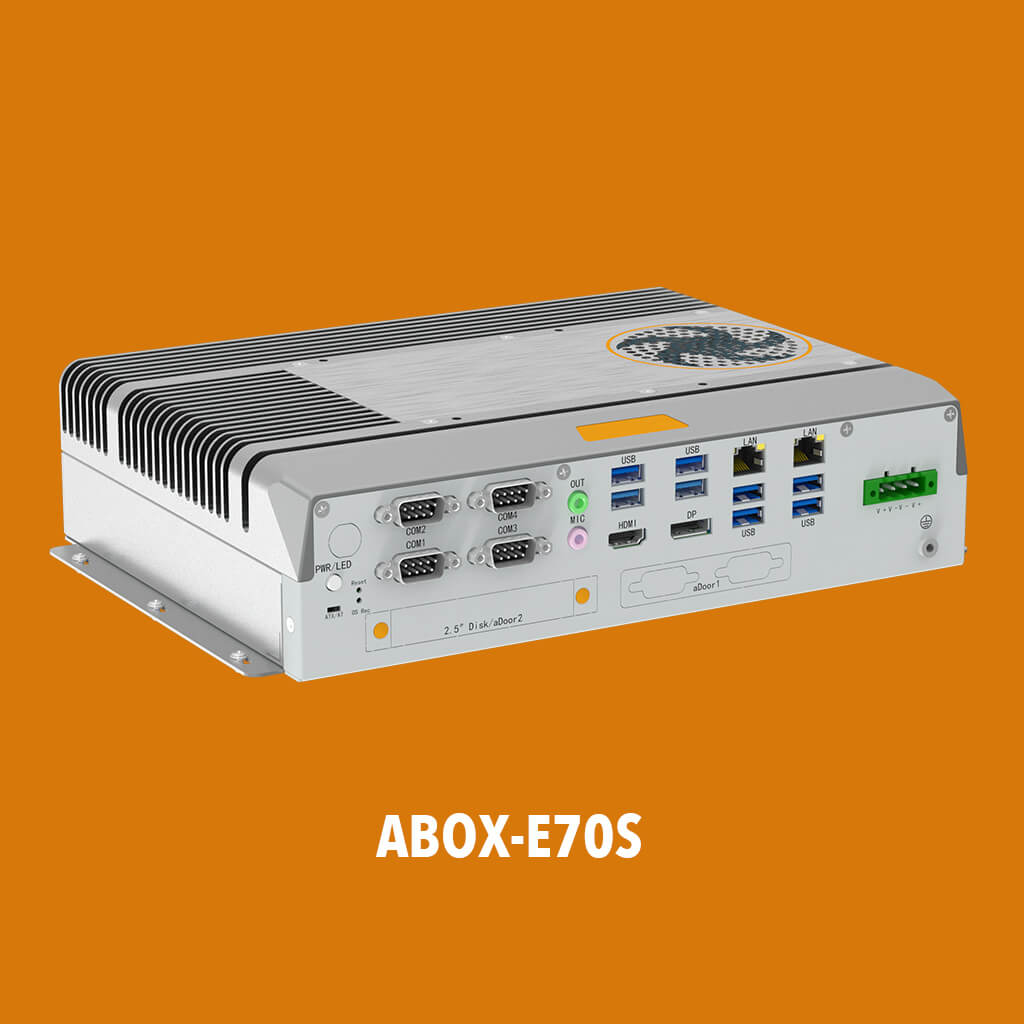

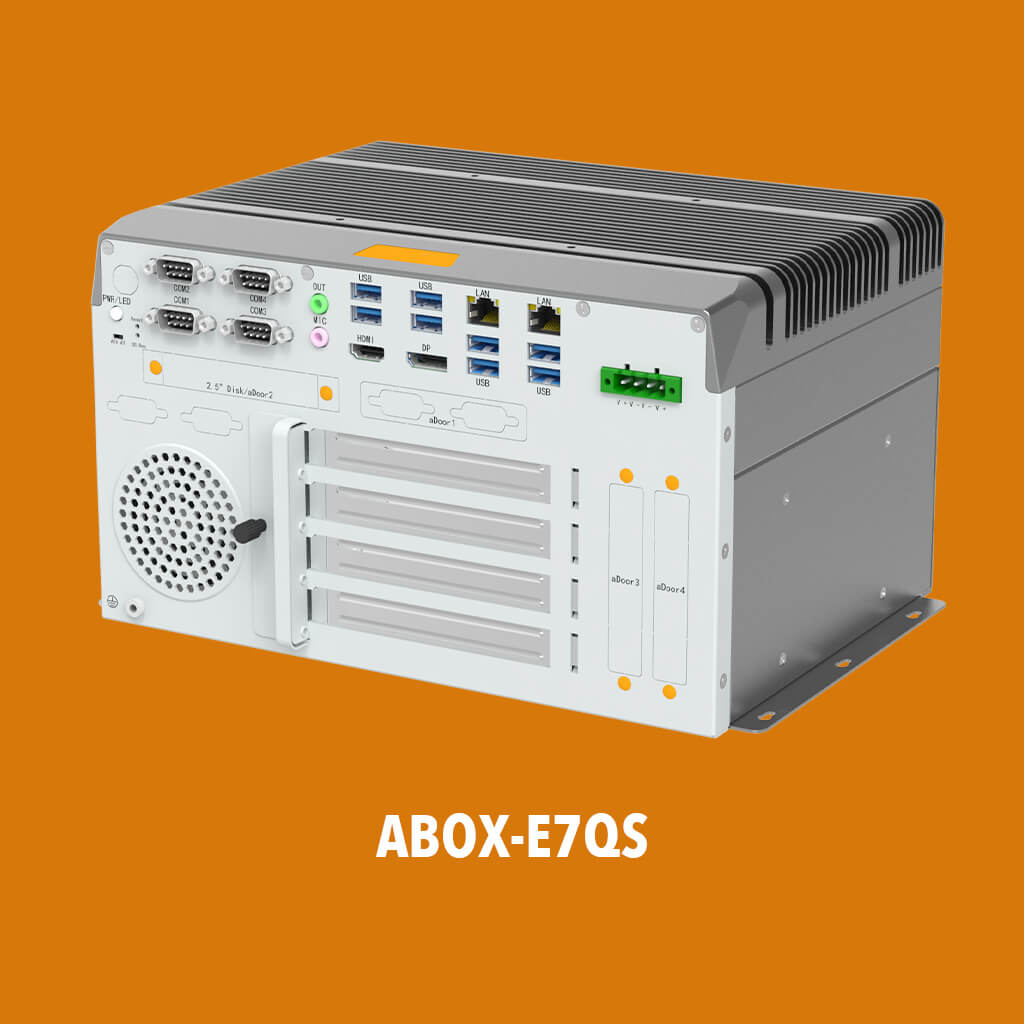

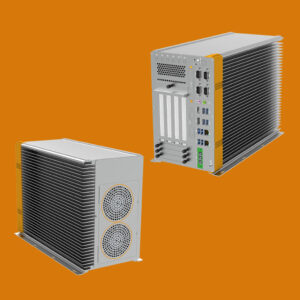

Ultra Powerful Embedded PCs with fan ABOX-E7xS
Key features:
– Support Intel® 4th~14th Gen. Core™ i7/i5/i3 Desktop 65W processors;
– Support Intel H81, H110, H610, Q170, Q670 industrial chipset;
– 2* RJ45 Ethernet ports;
– 4* DB9 COM ports (2* RS232/RS422/RS485);
– At least 2* Video signal (HDMI/DP/DVI/VGA) ports;
– Optional 4G/5G/Wi-Fi/BT wireless expansions via Mini-PCIe/M.2 slot;
– Flexible aDoor expansion slots for more I/O interfaces;
– Optional Rich PCIe/PCI standard expansion slots;
– Wide DC 9 ~36V power input (Optional 12V);

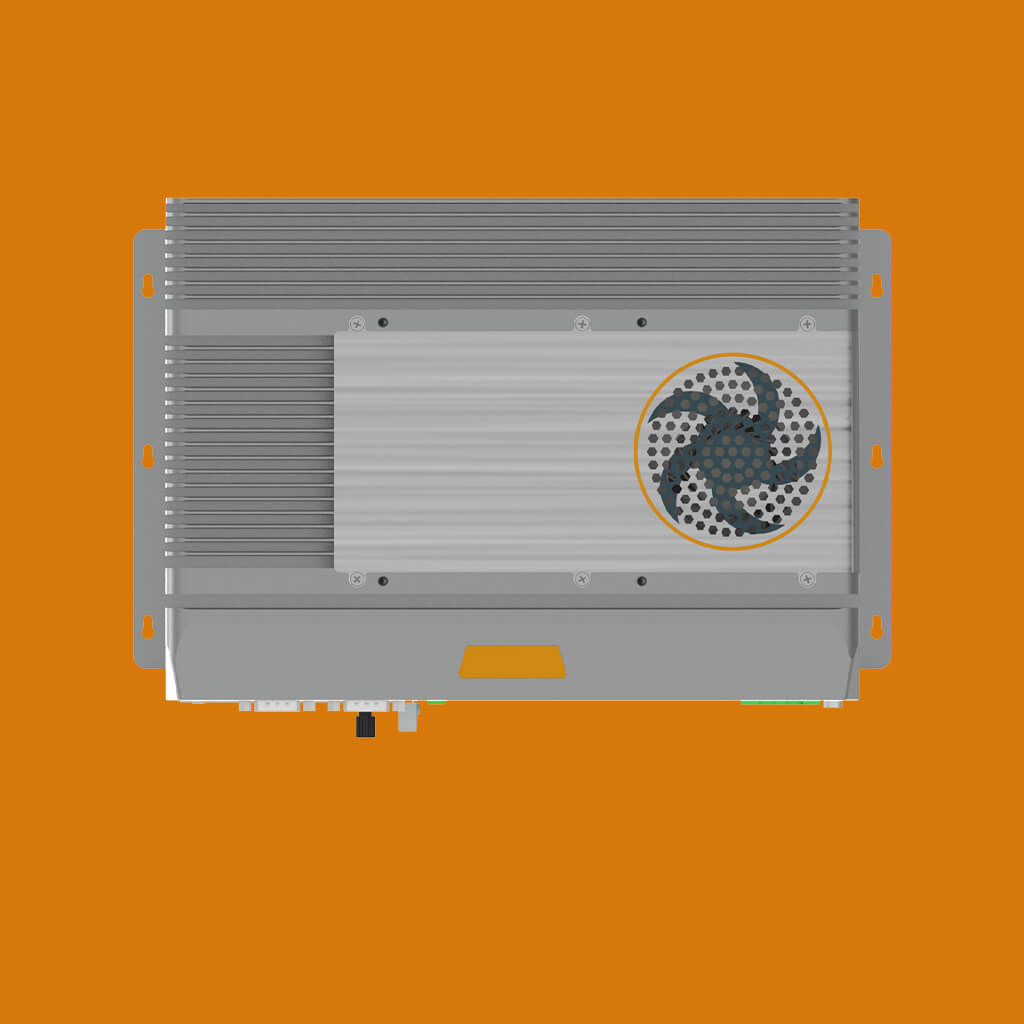

– With PWM fan designed.
"*" indicates required fields
Description
Mainkco IPC ABOX-E7xS series is a ultra powerful performance Embedded PCs with PWM fan designed, available with wide range (4th Gen. to 14th Gen.) Intel Desktop Core 65W CPU processors for super high computing projects. This series embedded computers also incorporate rich IO interfaces, such as 2* Intel GbE ports, 8* USB (At least 6), 3* Display ports, and Mini-PCIe/M.2 expansion sockets for ultra-fast data transfer speed. It also support 3* storage drives and RAID 0/1/5 feature for specific needs.
Based on our innovative aDoor/MXM technology, it allows to expand IO and function modules, such as GbE/PoE ports, COM ports, isolated digital I/O, and more. Furthermore, ABOX-E7xS series is available with flexible PCIe/PCI expansion slots to accommodate versatile add-on module cards.
Ordering Information
Ordering Information
| Series | Description |
| ABOX-E7xS-H81 | Intel 4th to 5th Gen. Core i3/i5/i7 65W Desktop CPUs, Intel H81 Chipset, 2 RJ45, 4 COM, 6 USB, 1 DVI, 1 VGA, DC 9 to 36V, PSU, Flexible aDoor/PCIe/PCI expansions |
| ABOX-E7xS-H110 | Intel 6th to 9th Gen. Core i3/i5/i7 65W Desktop CPUs, Intel H110 Chipset, 2 RJ45, 4 COM, 6 USB, 1 DVI, 1 VGA, DC 9 to 36V, PSU,Flexible aDoor/PCIe/PCI expansions |
| ABOX-E7xS-H610 | Intel 12th to 14th Gen. Core i3/i5/i7 65W Desktop CPUs, Intel H610 Chipset, 2 RJ45, 4 COM, 6 USB, 1 HDMI, 1 DP, DC 9 to 36V, PSU,Flexible aDoor/PCIe/PCI expansions |
| ABOX-E7xS-Q170 | Intel 6th to 9th Gen. Core i3/i5/i7 65W Desktop CPUs, Intel Q170 Chipset, 2 RJ45, 4 COM, 6 USB, 1 DP, 1 DVI, 1 VGA, DC 9 to 36V, PSU,Flexible aDoor/PCIe/PCI expansions |
| ABOX-E7xS-Q670 | Intel 12th to 14th Gen. Core i3/i5/i7 65W Desktop CPUs, Intel H610 Chipset, 2 RJ45, 4 COM, 8 USB, 1 HDMI, 1 DP, DC 9 to 36V, PSU,Flexible aDoor/PCIe/PCI expansions |
Technical Data
Technical Data
ABOX-E7xS-H81 Specs:
| Models | ABOX-E70S-H81 | ABOX-E7DS-H81 | |
| CPU | Intel 4th /5th Gen. Core i7/i5/i3, Pentium, Celeron Desktop CPUs; 65W TDP; LGA1150 | ||
| Chipset | Intel H81 | ||
| BIOS | AMI UEFI BIOS (Support Watchdog Timer) | ||
| Memory | 2* Non-ECC SO-DIMM Slots, Dual Channel, DDR3 up to 1600Mhz; Max. up to 16GB (Single max. 8GB) | ||
| Graphics | Intel HD Graphics | ||
| Ethernet | 2* RJ45; 1* Intel i218-LM/V GbE chip, 1* Intel i210AT GbE chip | ||
| Storage | 1* 2.5” SATA3.0, hard disk bay (T<7mm); 1* 2.5” SATA3.0 (Internal, Optional, T<9mm) | ||
| 1* M.2 Key-M (SATA3.0, 2280) | |||
| Expansion Slots | N/A | [1]: 1* PCIe x16 (x16)
[2]: 2* PCI Note: One out of two, expansion card length < 185mm, TDP<130W |
|

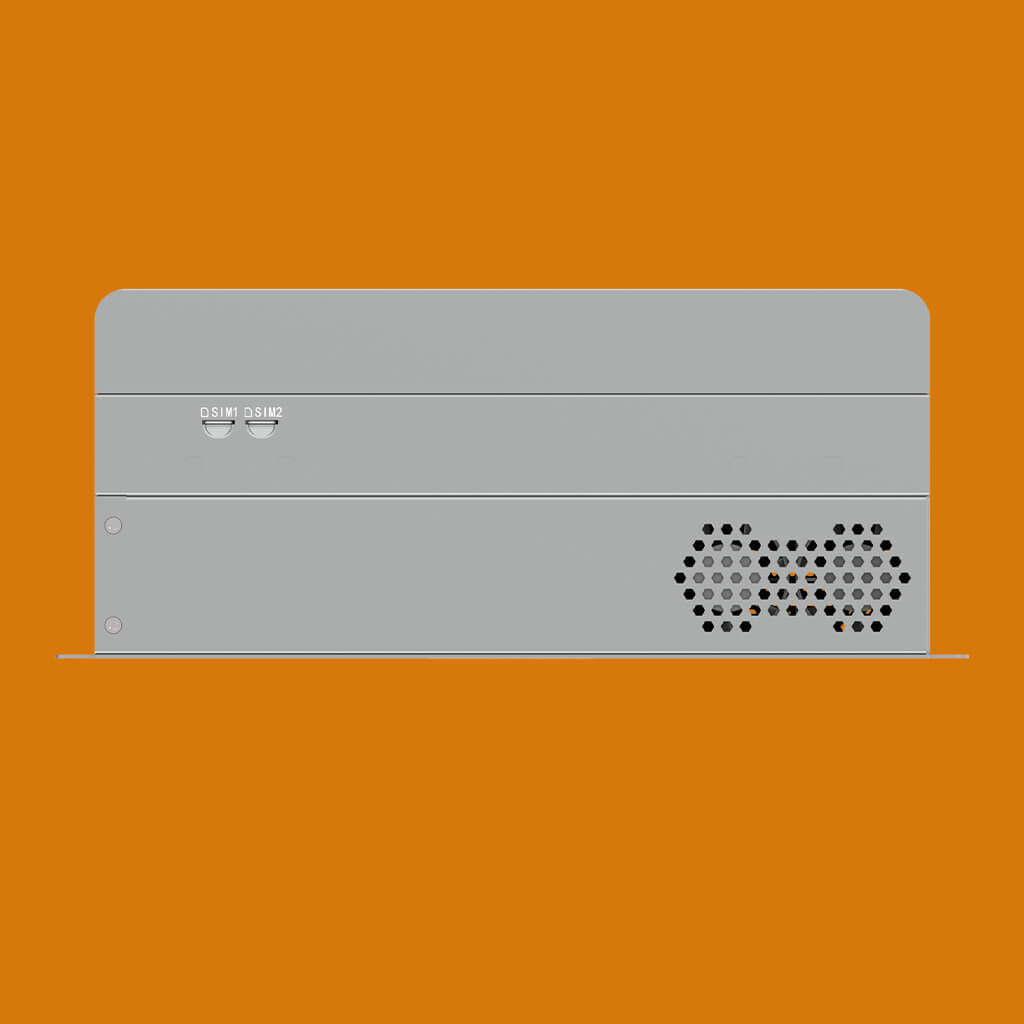

| 1* aDoor/MXM slot (Optional 4*LAN, 4* PoE LAN, 6*COM, 16* GPIO expansion modules) | |||
| 1* Mini-PCIe (PCIe2.0 x1+ USB2.0, with 1* Nano SIM Card slot) | |||
| Front I/O | 2* RJ45 | ||
| 2* USB3.0 (Type-A, 5Gbps), 4* USB2.0 (Type-A) | |||
| 1* DVI-D: Max. resolution up to 1920*1200 @60Hz | |||
| 1* VGA: Max. resolution up to 1920*1200 @60Hz | |||
| 1* DP: Max. resolution up to 4096*2160 @60Hz | |||
| 2* RS232/RS422/RS485 (COM1/2, DB9/M, Full Lane, BIOS Switch); 2* RS232 (COM3/4, DB9/M) | |||
| 2* 3.5mm Jack (Line-out + Mic) | |||
| 1* Power Button/LED; 1* System reset button (Hold 0.2s~1s to restart, and hold 3s to clear CMOS) | |||
| Rear I/O | 4* Antenna holes | ||
| 1* Nano SIM Card slot | |||
| Internal I/O (Wafer) | 2* USB2.0 (Wafer) | ||
| 1* LVDs (Wafer): Max. resolution up to 1920*1200 @60Hz | |||
| 1* TF_PANEL (3* USB2.0 + FPANEL, wafer) | |||
| 1* FPANEL (PWR + RST + LED, Wafer) | |||
| 2* RS232 (COM5/6, Wafer) | |||
| 1* 16 bits DIO (8* DI and 8* DO, Wafer) | |||
| 1* LPC (Wafer) | |||
| 2* SATA-III 7P Connector; 2* SATA Power (Wafer) | |||
| 1* CPU Fan (Wafer); 2* SYS Fan (Wafer) | |||
| Power Supply | AT/ATX; DC 9~36V input, P<240W; 1* 4P connector, P=5.00/5.08 | ||
| OS | Windows 7/10/11 | ||
| Linux | |||
| Watch dog | Programmable via software from 1 to 255 second | ||
| Mechanical | Aluminum alloy, SGCC housing | ||
| VESA, Wall mount, Desktop | |||
| 268mm * 194.2mm* 67.7mm | 268mm * 194.2mm *118.5mm | ||
| Netweight:4.5KG; Gross:6KG | Netweight:4.7KG; Gross:6.2KG | ||
| Environment | PWM Fan design | ||
| Operating temp.: -20 ~+60C (Industrial SSD) | |||
| Storage temp.: -40 ~+80C (Industrial SSD) | |||
| Humidity: 10% to 90% RH (Non-Condersation) | |||
| Vibration: IEC 60068-2-64 (3Gms @5~500Hz, random, 1hr/axis) with SSD | |||
| Shock: IEC 60068-2-27 (30G, half sine, 11ms) with SSD | |||
| Certification: CE | |||
ABOX-E7xS-H610 Specs:
| Models | ABOX-E70S-H610 | ABOX-E7DS-H610 | |
| CPU | Intel 12th /13th /14th Gen. Core i7/i5/i3, Pentium, Celeron Desktop CPUs; 65/35W TDP; LGA1700 | ||
| Chipset | Intel H610 | ||
| BIOS | AMI UEFI BIOS (Support Watchdog Timer) | ||
| Memory | 2* Non-ECC SO-DIMM Slots, Dual Channel, DDR4 up to 3200Mhz; Max. up to 64GB (Single max. 32GB) | ||
| Graphics | Intel HD Graphics | ||
| Ethernet | 2* RJ45; 1* Intel i219-LM/V GbE chip, 1* Intel i225-V/LM 2.5GbE chip | ||
| Storage | 1* 2.5” SATA3.0, hard disk bay (T<7mm); 1* 2.5” SATA3.0 (Internal, Optional, T<9mm) | ||
| 1* M.2 Key-M (SATA3.0, 2280) | |||
| Expansion Slots | N/A | [1]: 1* PCIe x16 (x16)
[2]: 2* PCI Note: One out of two, expansion card length < 185mm, TDP<130W |
|
| 1* aDoor slot (Optional 4*LAN, 4* PoE LAN, 6*COM, 16* GPIO expansion modules) | |||
| 1* Mini-PCIe (PCIe3.0 x1+ USB2.0, with 1* Nano SIM Card slot) | |||
| Front I/O | 2* RJ45 | ||
| 2* USB3.2 Gen x1 (Type-A, 10Gbps), 2* USB3.0 (Type-A, 5Gbps), 2* USB2.0 (Type-A) | |||
| 1* HDMI 1.4b: Max. resolution up to 4096*2160 @30Hz | |||
| 1* DP 1.4a: Max. resolution up to 4096*2160 @60Hz | |||
| 2* RS232/RS422/RS485 (COM1/2, DB9/M, Full Lane, BIOS Switch); 2* RS232 (COM3/4) | |||
| 2* 3.5mm Jack (Line-out + Mic) | |||
| 1* Power Button/LED; 1* System reset button (Hold 0.2s~1s to restart, and hold 3s to clear CMOS) | |||
| Rear I/O | 4* Antenna holes | ||
| 1* Nano SIM Card slot | |||
| Internal I/O (Wafer) | 6* USB2.0 (Wafer) | ||
| 1* LVDs (Wafer): Max. resolution up to 1920*1200 @60Hz | |||
| 1* FPANEL (PWR + RST + LED, Wafer) | |||
| 2* RS232 (COM5/6, Wafer) | |||
| 1* 16 bits DIO (8* DI and 8* DO, Wafer) | |||
| 1* LPC (Wafer) | |||
| 3* SATA-III 7P Connector; 3* SATA Power (Wafer) | |||
| 1* CPU Fan (Wafer); 2* SYS Fan (Wafer) | |||
| Power Supply | AT/ATX; DC 9~36V input, P<240W; DC18~60V input, P<400W; 1* 4P connector, P=5.00/5.08 | ||
| OS | Windows 10/11 | ||
| Linux | |||
| Watch dog | Programmable via software from 1 to 255 second | ||
| Mechanical | Aluminum alloy, SGCC housing | ||
| VESA, Wall mount, Desktop | |||
| 268mm * 194.2mm* 67.7mm | 268mm * 194.2mm *118.5mm | ||
| Netweight:4.5KG; Gross:6KG | Netweight:4.7KG; Gross:6.2KG | ||
| Environment | PWM Fan design | ||
| Operating temp.: -20 ~+60C (Industrial SSD) | |||
| Storage temp.: -40 ~+80C (Industrial SSD) | |||
| Humidity: 10% to 90% RH (Non-Condersation) | |||
| Vibration: IEC 60068-2-64 (3Gms @5~500Hz, random, 1hr/axis) with SSD | |||
| Shock: IEC 60068-2-27 (30G, half sine, 11ms) with SSD | |||
| Certification: CE | |||
ABOX-E7xS-Q170 Specs:
| Models | ABOX-E70S-Q170 | ABOX-E7DS-Q170 | ABOX-E7QS-Q170 |
| CPU | Intel 6th /7th /8th /9th Gen. Core i7/i5/i3, Pentium, Celeron Desktop CPUs; 65W TDP; LGA1151 | ||
| Chipset | Intel Q170 | ||
| BIOS | AMI UEFI BIOS (Support Watchdog Timer) | ||
| Memory | 2* Non-ECC SO-DIMM Slots, Dual Channel, DDR4 up to 2133Mhz; Max. up to 64GB (Single max. 32GB) | ||
| Graphics | Intel HD Graphics | ||
| Ethernet | 2* RJ45; 1* Intel i210-AT GbE chip, 1* Intel i219-LM/V GbE chip | ||
| Storage | 1* 2.5” SATA3.0, hard disk bay (T<7mm); 1* 2.5” SATA3.0 (Internal, Optional); Support RAID 0,1 | ||
| 1* M.2 Key-M (PCIe x4 Gen3 + SATA3.0, NVMe/SATA SSD, Auto detect, 2280 | |||
| Expansion Slots | N/A | (1): 1* PCIe x16 (x16)+1* PCIe x4(x4) | (1): 2* PCIe x16 (x8/x8)+2* PCI |
| (2): 1* PCIe x16 + 1* PCI | (2): 1* PCIe x16 (x16)+1*PCIe x4(x4) | ||
| (3): 2* PCI | Note: 1/2: One out of two, Expansion card length <185mm, TDP<130W | ||
| Note: 1/2/3: One out of three; Expansion card length<185mm, TDP<130W | |||
| 1* MXM slot (Optional 4*LAN, 4* PoE LAN, 6*COM, 16* GPIO expansion modules) | |||
| 1* Mini-PCIe (PCIe x1 Gen2 + USB2.0, with 1* SIM Card slot) | |||
| 1* M.2 B-Key (PCIe x1 Gen2 + USB3.0, with 1* SIM Card slot) | |||
| Front I/O | 2* RJ45 | ||
| 6* USB3.0 (Type-A, 5Gbps) | |||
| 1* DVI-D: Max. resolution up to 1920*1200 @60Hz | |||
| 1* VGA (DB 15/F): Max. resolution up to 1920*1200 @60Hz | |||
| 1* DP: Max. resolution up to 4096*2160 @60Hz | |||
| 2* RS232/RS422/RS485 (COM1/2, DB9/M, Full Lane, BIOS Switch); 2* RS232 (COM3/4) | |||
| 2* 3.5mm Jack (Line-out + Mic) | |||
| 1* Power Button/LED; 1* System reset button (Hold 0.2s~1s to restart, and hold 3s to clear CMOS) | |||
| Rear I/O | 4* Antenna holes | ||
| 2* Nano SIM Card slots | |||
| Internal I/O (Wafer) | 2* USB2.0 (Wafer) | ||
| 1* LVDs (Wafer): Max. resolution up to 1920*1200 @60Hz | |||
| 1* TF_Panel (3* USB2.0 + FPANEL, Wafer) | |||
| 1* FPANEL (PWR + RST + LED, Wafer) | |||
| 2* RS232 (COM5/6, Wafer) | |||
| 1* 16 bits DIO (8* DI and 8* DO, Wafer) | |||
| 1* LPC (Wafer) | |||
| 2* SATA 7P Connector; 2* SATA Power (Wafer) | |||
| 1* CPU Fan (Wafer); 2* SYS Fan (Wafer) | |||
| Power Supply | AT/ATX; DC 9~36V input, P<240W; 1* 4P connector, P=5.00/5.08 | ||
| OS | 6th /7th Core i7/i5/i3: Windows 7/10/11 | ||
| 8th /7th Core i7/i5/i3: Windows 10/11 | |||
| Linux | |||
| Watch dog | Programmable via software from 1 to 255 second | ||
| Mechanical | Aluminum alloy, SGCC housing | ||
| VESA, Wall mount, Desktop | |||
| 268mm * 194.2mm* 67.7mm | 268mm * 194.2mm *118.5mm | 268mm * 194.2mm *159.5mm | |
| Netweight:4.5KG; Gross:6KG | Netweight:4.7KG; Gross:6.2KG | Netweight:4.8KG; Gross: 6.3KG | |
| Environment | PWM Fan cooling | ||
| Operating temp.: -20 ~+60C (Industrial SSD) | |||
| Storage temp.: -40 ~+80C (Industrial SSD) | |||
| Humidity: 10% to 90% RH (Non-Condersation) | |||
| Vibration: IEC 60068-2-64 (3Gms @5~500Hz, random, 1hr/axis) with SSD | |||
| Shock: IEC 60068-2-27 (30G, half sine, 11ms) with SSD | |||
| Certification: CE | |||
ABOX-E7xS-Q670 Specs:
| Models | ABOX-E70S-Q670 | ABOX-E7DS-Q670 | ABOX-E7QS-Q670 |
| CPU | Intel 12th /13th /14th Gen. Core i7/i5/i3, Pentium, Celeron Desktop CPUs; 65W TDP; LGA1700 | ||
| Chipset | Intel Q670 | ||
| BIOS | AMI UEFI BIOS (Support Watchdog Timer) | ||
| Memory | 2* Non-ECC SO-DIMM Slots, Dual Channel, DDR4 up to 3200Mhz; Max. up to 64GB (Single max. 32GB) | ||
| Graphics | Intel HD Graphics | ||
| Ethernet | 2* RJ45; 1* Intel i219-LM GbE chip, 1* Intel i225-V 2.5GbE chip | ||
| Storage | 1* 2.5” SATA3.0, hard disk bay (T<7mm); 1* 2.5” SATA3.0 (Internal, Optional); Support RAID 0,1,5 | ||
| 1* M.2 Key-M (PCIe x4 Gen4 + SATA3.0, NVMe/SATA SSD, Auto detect, 2280) | |||
| Expansion Slots | N/A | (1): 1* PCIe x16 (x16)+1* PCIe x4(x4) | (1): 2* PCIe x16 (x8/x8)+2* PCI |
| (2): 1* PCIe x16 + 1* PCI | (2): 1* PCIe x16 (x16)+1*PCIe x4(x4) | ||
| (3): 2* PCI | Note: 1/2: One out of two, Expansion card length <185mm, TDP<130W | ||
| Note: 1/2/3: One out of three; Expansion card length<185mm, TDP<130W | |||
| 1* aDoor slot (Optional 4*LAN, 4* PoE LAN, 6*COM, 16* GPIO expansion modules) | |||
| 2* Mini-PCIe (PCIe x1 Gen3 + USB2.0, with 2* SIM Card slot) | |||
| 1* M.2 E-Key (PCIe x1 Gen3 + USB2.0, 2230) | |||
| Front I/O | 2* RJ45 | ||
| 2* USB3.2 Gen x1 (Type-A, 10Gbps), 6* USB3.0 (Type-A, 5Gbps) | |||
| 1* HDMI 1.4b: Max. resolution up to 4096*2160 @30Hz | |||
| 1* DP 1.4a: Max. resolution up to 4096*2160 @60Hz | |||
| 2* RS232/RS422/RS485 (COM1/2, DB9/M, Full Lane, BIOS Switch); 2* RS232 (COM3/4) | |||
| 2* 3.5mm Jack (Line-out + Mic) | |||
| 1* Power Button/LED; 1* System reset button (Hold 0.2s~1s to restart, and hold 3s to clear CMOS) | |||
| Rear I/O | 4* Antenna holes | ||
| 2* Nano SIM Card slots | |||
| Internal I/O (Wafer) | 6* USB2.0 (Wafer) | ||
| 1* LVDs (Wafer): Max. resolution up to 1920*1200 @60Hz | |||
| 1* FPANEL (PWR + RST + LED, Wafer) | |||
| 2* RS232 (COM5/6, Wafer) | |||
| 1* 16 bits DIO (8* DI and 8* DO, Wafer) | |||
| 1* LPC (Wafer) | |||
| 3* SATA-III 7P Connector; 3* SATA Power (Wafer) | |||
| 1* CPU Fan (Wafer); 2* SYS Fan (Wafer) | |||
| Power Supply | AT/ATX; DC 9~36V input, P<240W; DC18~60V input, P<400W; 1* 4P connector, P=5.00/5.08 | ||
| OS | Windows 10/11 | ||
| Linux | |||
| Watch dog | Programmable via software from 1 to 255 second | ||
| Mechanical | Aluminum alloy, SGCC housing | ||
| VESA, Wall mount, Desktop | |||
| 268mm * 194.2mm* 67.7mm | 268mm * 194.2mm *118.5mm | 268mm * 194.2mm *159.5mm | |
| Netweight:4.5KG; Gross:6KG | Netweight:4.7KG; Gross:6.2KG | Netweight:4.8KG; Gross: 6.3KG | |
| Environment | PWM Fan Cooling | ||
| Operating temp.: -20 ~+60C (Industrial SSD) | |||
| Storage temp.: -40 ~+80C (Industrial SSD) | |||
| Humidity: 10% to 90% RH (Non-Condersation) | |||
| Vibration: IEC 60068-2-64 (3Gms @5~500Hz, random, 1hr/axis) with SSD | |||
| Shock: IEC 60068-2-27 (30G, half sine, 11ms) with SSD | |||
| Certification: CE | |||
Dimensions & IO Interfaces
Dimensions & IO Interfaces

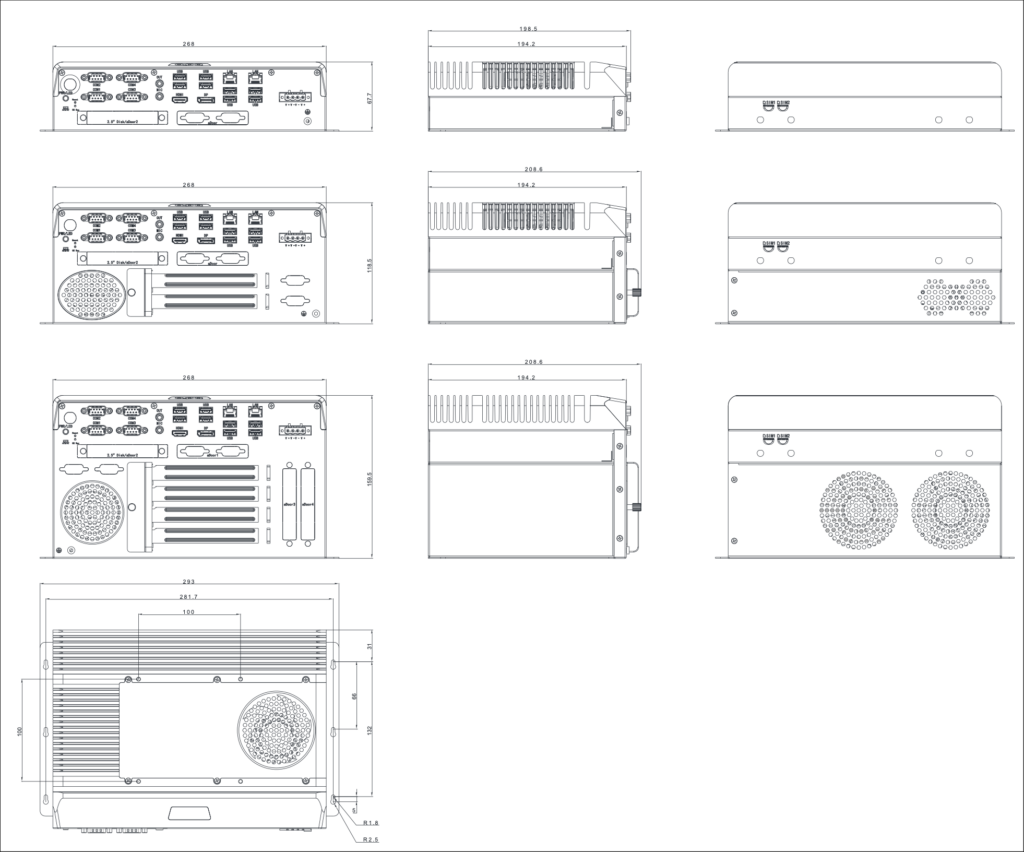

Dimensions:

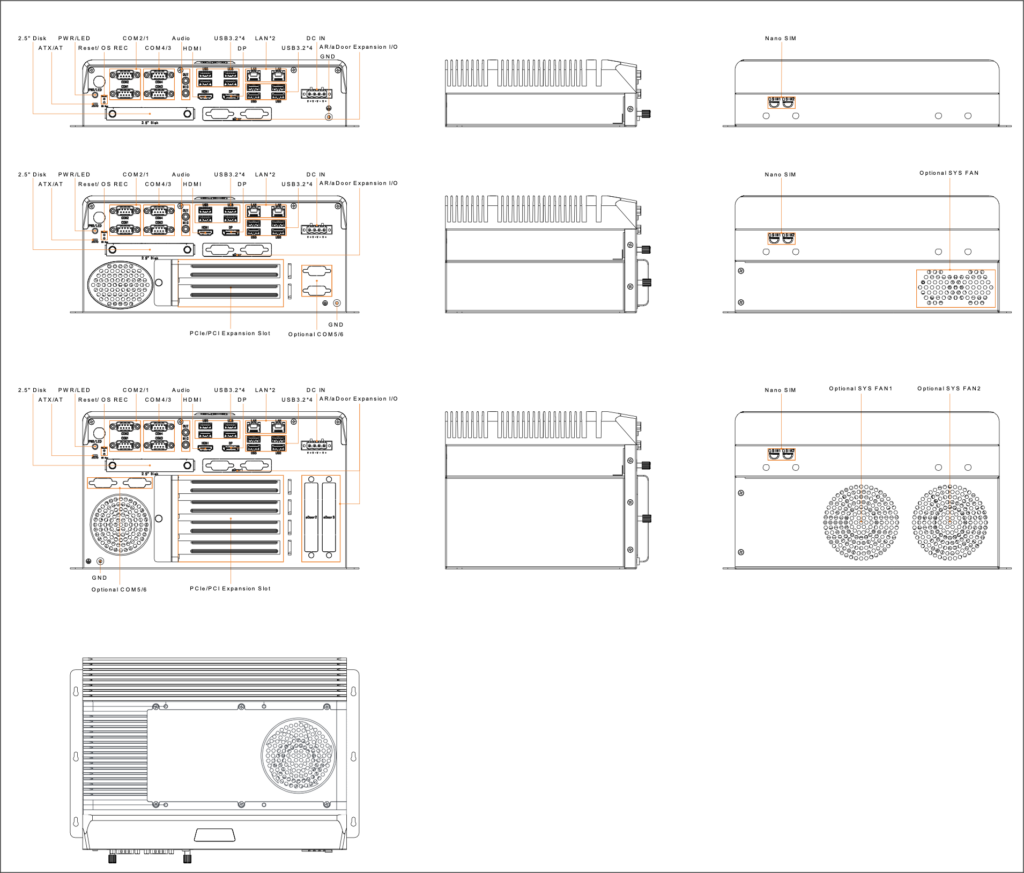

IO interfaces:
