Mainkco IPC ABOX-2150 is using NVIDIA Jetson Orin NX system of modules (SOM) from our ABOX-2100 modular AI edge computing family. Its computing capacity can be up to 70/100 TOPS of accelerated computing power to run modern neural networks and process data from multiple high-resolution sensors to meet the requirements of a complete AI system. Also, the ABOX-2150 now support Super mode for higher TOPS AI computing capacity. The ABOX-2150 AI edge computing PC is designed with rich IO interfaces for industrial and automation applications, including 3 GLAN, 4 USB3.0, 1 HDMI display…
AI edge computing with NVIDIA Jetson Orin NX platform ABOX-2150
Key features:
Ø 6/8 Cores NVIDIA Arm Cortex A78AE v8.2 64-bit processor, 2Ghz;
Ø 1024 core NVIDIA Ampere GPU with 16/32 Tensor Core, 765 Mhz/918 Mhz;
Ø AI performance 70/100 TOPS, support super mode to 117/157 TOPS;
Ø On-board 4GB/8GB memory, 1* M.2 Key-M 2280 SSD slot;
Ø 3*GLAN, 2*USB3.1, 2* USB3.0, 1*HDMI, DC, OTG;
Ø 1*M.2 B-key 3052 slot, 1*Mini-PCIe slot, 1* M.2 E-key slot, 2* Nano Sim card slot;
Ø DC 12~28V power input, industrial operating temp. -20 ~ +60 ℃.
"*" indicates required fields
Description
Technical Data
Technical Data
| System | |
| CPU | 6/8 cores NVIDA ARM Cortex A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3 or 2MB L2 + 4MB L3, 2.0Ghz |
| CPU Ghz | 2.0Ghz / 2.0Ghz (Super mode) |
| AI | 70 TOPS (117 TOPS, super mode) /100 TOPS (157 TOPS, Super mode) |
| GPU | 1024-core NVIDA Ampere GPU with 32 Tensor Cores |
| 765 Mhz (1173 Mhz, super mode; 918 Mhz (1173 Mhz, super mode) | |
| TDP | MAXN 20W (40W, super mode); MAXN 25W (40W, super mode) |
| Display | 1* HDMI (Type-A): Max. resolution up to 4096*2304 @30Hz |
| Memory | Onboard 8GB 128bit LPDDR5 102.4GB/s; or onboard 16GB 128bit LPDDR5 GB/s 102.4GB/s |
| Storage | 1* M.2 2280 Key-M slot (NVMe SSD) |
| Network | 1* GbE LAN (From SOM), 2* Intel I210AT GbE LAN |
| USB | 2* USB 10Gbps, 2* USB 5Gbps, 1*USB2.0(Internal, wafer), 1* OTG (Type-C, Flashing port),
1* Debug (Type-A, Debug port) |
| Internal I/O (wafer) | 16 bits DIO; 4* RS232/RS485 (jumper switch); 2* CAN FD; Audio; 1* IIC |
| 1* SPI; 1* System Fan; 1* BAT; 1* Front Panel (PWR + Reset+ Recovery) | |
| 1* Audio (Line-out +Mic); 1* Amplifier 5W (Per channel) into a 8-Ω loads | |
| DC | DC 12~28V (1* 2Pin Terminal) |
| Expansion | 1* Mini-PCIe slot (PCIe x1 + USB2.0 signal, with 1* Nano SIM card slot) |
| 1* M.2 E-key slot (PCIe x1 + USB2.0, 2230) | |
| 1* M.2 B-key 3052 slot (USB 5Gbps + USB2.0, with 1* Nano Sim Card slot) | |
| Button/LED | 1* Power button, with LED light; 1* Recovery Button; 1* System Reset Button |
| OS | JetPack 6.2 (Ubuntu 22.04) |
| Structure | |
| Treatment | SGCC & Aluminum Alloy, Anodizing and painting |
| Color | Iron Grey |
| Cooling | Active Fan cooling |
| Weight | Around 1.5 kg (Net weight) |
| Dimension | 150.7mm (L)x 114.5mm (W) x 45mm (H) (Mounting rack not included) |
| Mounting | Desktop mount, Wall mount (optional), Din-Rail mount (Optional) |
| Environmental | |
| Operation temp. | Operating temp.: -20~60°C (Industrial SSD) |
| Storage | -40~80°C |
| Humidity | 10%~95%@40°C, non-condensation |
| Vibration | 3Grms@5~500Hz，random，1 hr/axis； |
| Shock | 10G, half sine (11ms sec) |

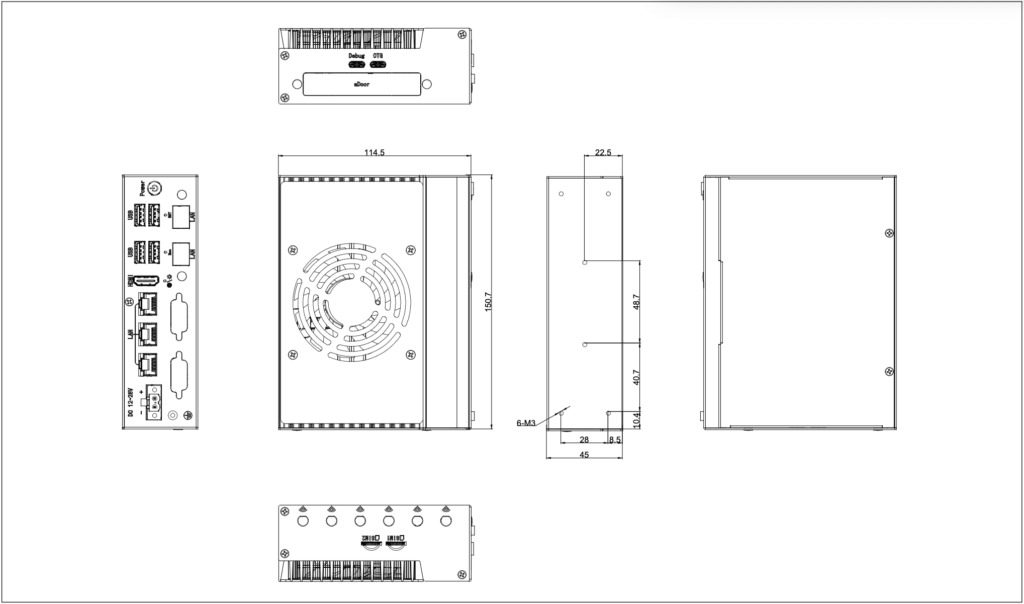

Product Dimension
Product Dimension
